Swampfox Arrowhead Series 1-10X24 SFP Red IR BDC 30mm Tube
Swampfox Arrowhead Series 1-10X24 SFP Red IR BDC 30mm Tube
Couldn't load pickup availability
The Swampfox Arrowhead is their flagship LPVO (low power variable optic) series that exceeds all requirements for end-user applications. Every Arrowhead comes with push/pull locking turrets to ensure accuracy and prevent unintentional adjustments. Arrowhead also features a brighter sight picture expansive field of view and excellent resolution. Offered in three second focal plane reticles: Guerrilla Dot BDC Long Guerrilla Dot MOA Long and Guerrilla Dot MIL each with 12 red or green illumination settings. The Arrowhead is an excellent choice for both close quarters and long-distance engagements.
GUERRILLA DOT BDC LONG :

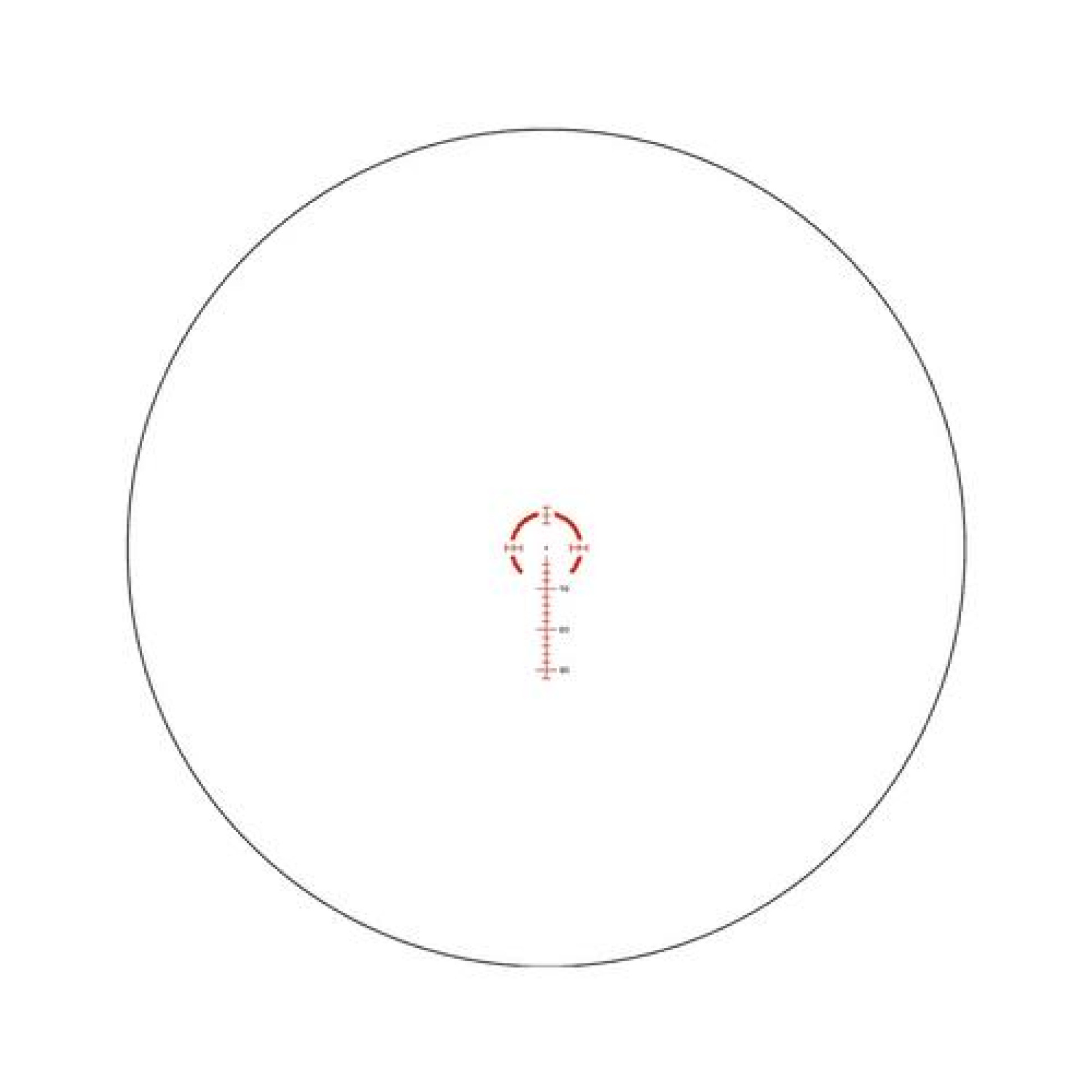

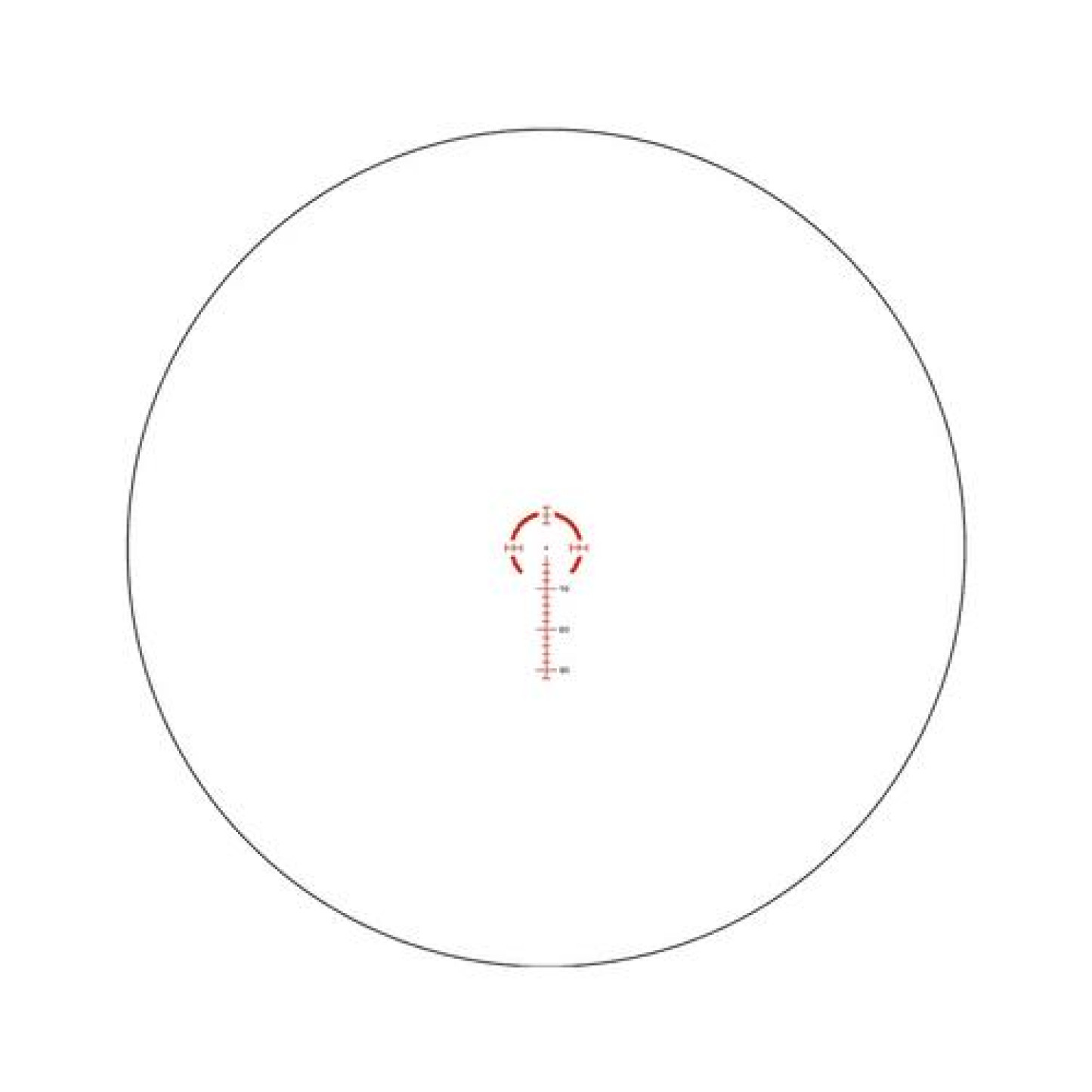

The Guerrilla Dot BDC Long reticle offers 5.56 NATO/.308 Win bullet drop compensation with a 50/200 zero center dot for CQB (close quarters battle) and long-range capabilities. The reticle also includes holdover points for shots at 600 700 and 800 yards.
Features :
Arrowhead was designed for demanding situations where you may not have access to tools for adjustments. The push/pull turret locking system allows for fast and accurate adjustments without tools. MOA reticles have a 0.5 MOA adjustment per click while MIL reticles have a 0.1 MIL adjustment per click.
Arrowhead's dual LED emitters provide bright daylight-level illumination for the etched reticle. Arrowhead features 12 illumination settings with intermittent off settings to extend battery life and reduce wear on the adjustment turret. Also included are 2 illumination settings optimized for low light and compatible with NVG (night vision goggles) devices.
The quality of the glass is what sets LPVOs apart and Arrowhead does not disappoint. Its advanced optical engineering provides a wider field of view and brighter sight picture. The lens is treated with anti-reflection anti-fog anti-scratch and hydrophobic coatings for a tough and durable build.
The zero-reset feature allows for on-the-fly adjustments. To use this feature set your desired zero and use a tool or coin to remove the locking bolt on the turret. Then adjust the turret to reflect your new zero and reattach the locking bolt.
IN THE BOX
- Throw Lever Wrench for throw lever
- Flip Up Lens Caps
- Scope Cloth
- Battery Product Manual
- Reticle Manual
Share
Specifications
Specifications
| Manufacturer | 10 Ring |
|---|---|
| Battery Type | CR2032 |
| Brand | Swampfox Optics |
| Brand Family | Arrowhead LPVO |
| CA Prop 65 | Yes |
| Color | Black |
| Condition | New |
| Country of Origin | China |
| Optics Brightness | 12 Settings |
| Optics Class | Variable |
| Optics Diopter Adj | +/- 2 |
| Optics Elevation Adjustment | 100 MOA |
| Optics Exit Pupil | 8.0-2.33mm |
| Optics Eye Relief | 3.46-3.54" |
| Optics Field of View @100yds | 115.6-11.5 ft |
| Optics Finish | Black |
| Optics Focal Plane | SFP |
| Optics Fogproof | Yes |
| Optics Illuminated Reticle | Yes |
| Optics Incremental Adjustment | 1/2 MOA |
| Optics Length | 10.91" |
| Optics Lens Coating | Fully Multi-Coated |
| Optics Objective | 24 |
| Optics Parallax Adjustment | 100 yds |
| Optics Power Magnification | 1-10x |
| Optics Power Range | 1-10x |
| Optics Reticle | Guerrilla Dot BDC |
| Optics Shockproof | Resistant to 1100G |
| Optics Throw Lever | Yes |
| Optics Travel Per Rotation | 60 Clicks/ 30 MOA |
| Optics Tube Diameter | 30mm |
| Optics Turret Type | Push/Pull Locking with Zero Reset |
| Optics Type | Rifle Scope |
| Optics Windage Adjustment | 100 MOA |
| Warranty | Mfg 30 Day Limited |
| Waterproof | Hydrophobic |
| Weight | 20.36 oz |
