Dnz Products Llc

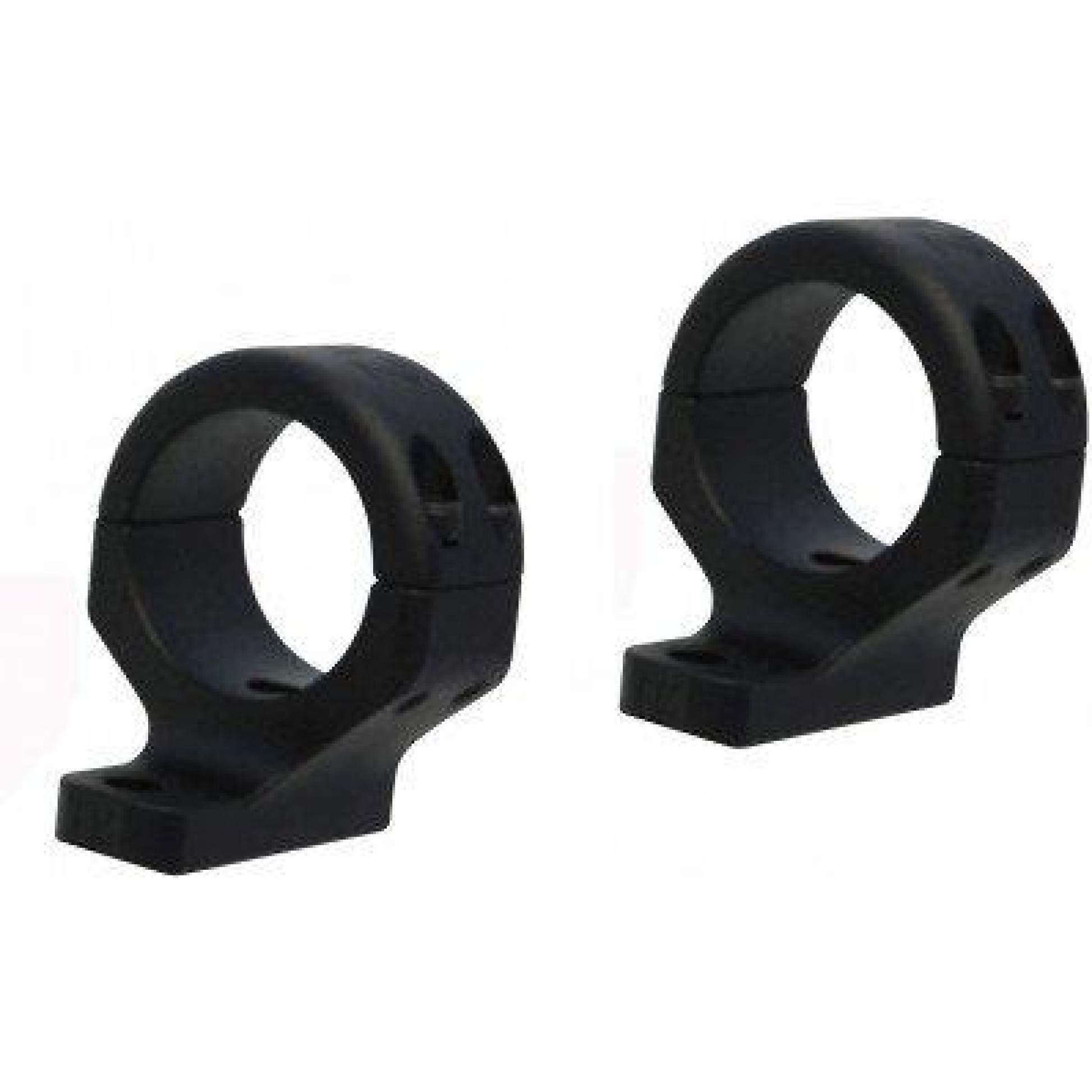

SAVAGE FLATBACK MOUNT 30MM HIGH
SAVAGE FLATBACK MOUNT 30MM HIGH
Regular price
$78.95
Regular price
$0.00
Sale price
$78.95
Quantity
Couldn't load pickup availability
Fast Shipping
Secure Checkout
Licensed FFL Dealer
Fits Savage Flatback Receiver (Fits 2003 and older long and short actions) :
- Front of receiver is rounded and back is flat where mounts attach.
- Base screws are 6-48 X 1/4? long. Ring screws are 6-40 X 5/8? long. Both use a 7/64 Allen wrench.
- Hole spacing dimensions on front and back mount are .86?. Both mounts are not the same part. Back mount is taller than front mount because receiver is lower on back end. Standard rings are .63? wide and Tactical rings are .80? wide. Standard rings have 2 screws per ring and Tactical rings have 4 screws per ring. Height of mounts from top of receiver to centerline of scope tube is – low .92? medium 1.05? and High 1.17?.
- 4 screws
Share
Specifications
Specifications
| Manufacturer | Dnz Products Llc |
|---|---|
| Brand | DNZ |
| Brand Family | Game Reaper 2 |
| CA Prop 65 | Yes |
| Compliance Item Type | Rails and Mounts |
| Condition | New |
| Country of Origin | USA |
| Material | Aluminum |
| Ring & Mount Action | LA/SA |
| Ring & Mount Finish | Anodized |
| Ring & Mount Pieces | 2-Piece |
| Ring & Mount Ring Height | High |
| Ring & Mount Ring Height Actual | 1.17" |
| Ring & Mount Tube Diameter | 30mm |
| Ring & Mount Type | Ringmount |
| Warranty | Mfg Limited Lifetime |
