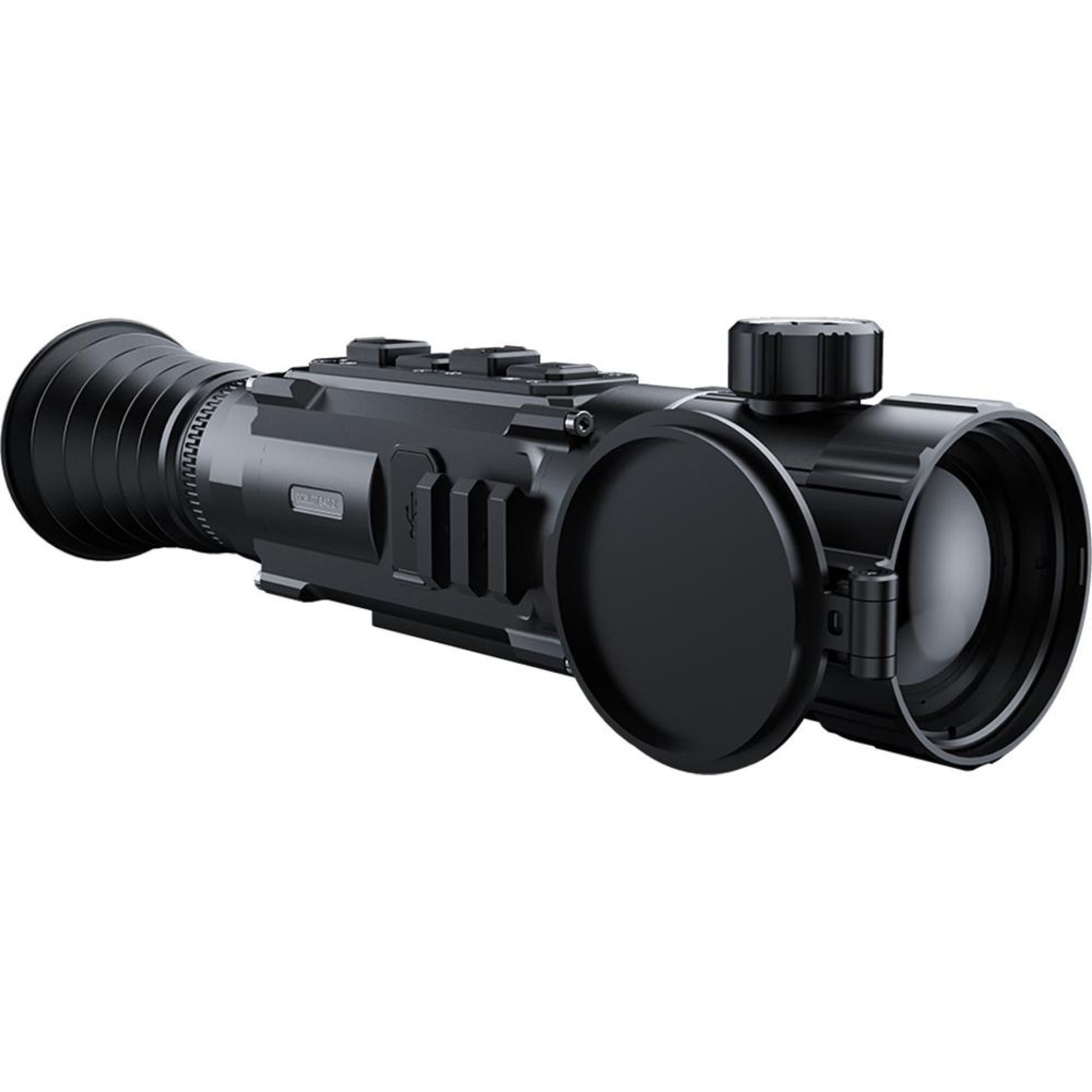

Pard Ocelot 640-Zoom w/LRF 640 25/50mm lens Thermal Imaging Scope w/LRF
Pard Ocelot 640-Zoom w/LRF 640 25/50mm lens Thermal Imaging Scope w/LRF
Couldn't load pickup availability
Ocelot Zoom: Switch between the 25mm lens that offers a 1.3x base magnification and the 50mm lens that offers a 2.5x base magnification. You can view magnified HD images without distortion using the 2-8X digital zoom. Switch between the two lenses by adjusting the main lens ring back and forth and focus with the knob on the top of the ring. An important technical specification is the Noise Equivalent Temperature Difference (NETD) rating. This is one of the most important technical specifications for any thermal device. NETD indicates how small of a thermal difference the device can detect in the environment. The Ocelot Zoom is an industry leading ≤20mK. The Ocelot Zoom features a cutting-edge uncooled Vanadium Oxide640x512 sensor that delivers clear images and crisp target details. It also features a 12µm pixel pitch which is a measurement of the distance between the pixels of the digital image.
25mm FOV: providing a wider field of view.
50mm FoV: providing a long distance shooting game.
Share
Specifications
Specifications
| Battery Count | 1 |
|---|---|
| Battery Run Time | 6 hr |
| Battery Type | Li-ion 21700*1 |
| Brand | Pard |
| Brand Family | Ocelot |
| CA Prop 65 | Yes |
| Color | Black |
| Condition | New |
| Country of Origin | China |
| Material | Aluminum |
| Microphone | Yes |
| Optics Activation Modes | Recoil Activated |
| Optics App Support | PardVision 2 |
| Optics Class | Thermal Imaging |
| Optics Finish | Anodized |
| Optics Length | 6.4" |
| Optics Mounting System | Integrated Weaver-Style |
| Optics Objective | 25/50 |
| Optics Shockproof | Yes |
| Optics Type | Thermal Laser Rangefinding Rifle Scope |
| Thermal Bluetooth | No |
| Thermal Boresight Adj | Digital Controlled |
| Thermal Detector Type | 12um |
| Thermal Digital Zoom | 2x 4x 6x 8x |
| Thermal Display / Monitor Type | IPS |
| Thermal Display Resolution | 800 x 800 |
| Thermal Eye Relief | 100mm |
| Thermal FOV Deg | 14.0° x 7.0° |
| Thermal Human Detect Range | 1200 / 2600 yds |
| Thermal Imaging Palettes | 6 Color |
| Thermal Magnification | 2.5x |
| Thermal Multi-Language Menu | Yes |
| Thermal NETD | <20 mk |
| Thermal Objective Lens (Focal Length) | 25mm / 50mm |
| Thermal Operating Temperature | -22 to 131°F / -30 to 55°C |
| Thermal Optics Wi-Fi | Yes |
| Thermal PIP Mode | Yes |
| Thermal Power Supply | USB-C External |
| Thermal Rangefinder | 1200 yd |
| Thermal Recording Type | On-Board Video and Audio & Still Images |
| Thermal Reticle | Multiple Colors and Patterns |
| Thermal Scene Modes | City/Rain/Forest |
| Thermal Sensor Frame (Refresh) Rate | 50 Hz |
| Thermal Sensor Pixel Interval | 12 um |
| Thermal Sensor Resolution | 640 x 512 |
| Thermal Standby Mode | Yes |
| Thermal Temp Spot Tracking | yes |
| Thermal Video Recording Resolution | 768x768 |
| Warranty | Mfg 3 Year Limited |
| Waterproof | IP67 |
| Weight | 25 oz |
