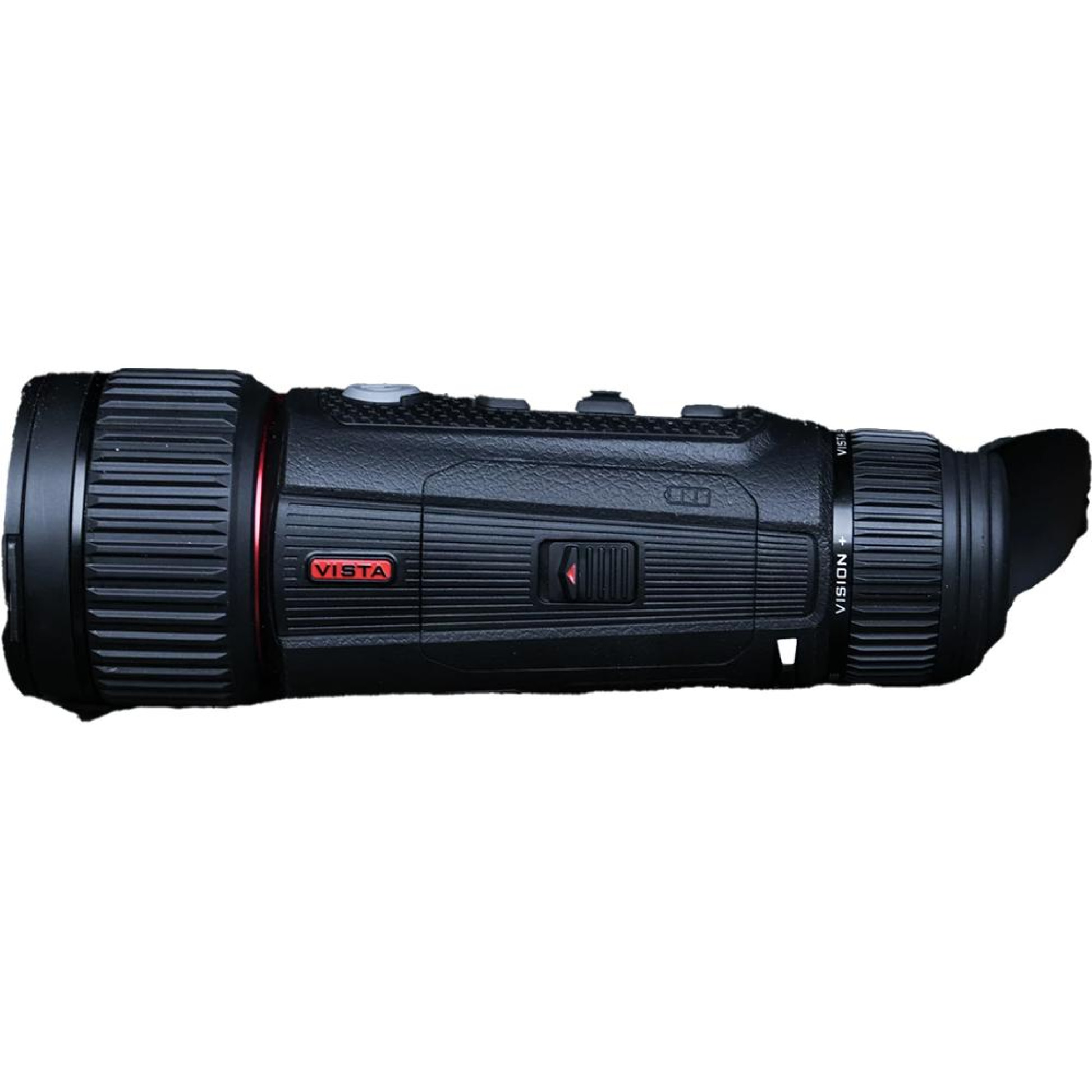

Nocpix Rangefinding Thermal Monocular 640x480 35 mm
Nocpix Rangefinding Thermal Monocular 640x480 35 mm
Couldn't load pickup availability
The Nocpix VISTA handheld thermal monocular features an advanced f/0.9 germanium objective lens offering exceptional clarity and detail. The original 50 mm model (ideal for long-distance observation) is now joined by a new 35 mm variant with a 3× native magnification ideal for close and medium range hunting distances. Equipped with a high-resolution 640×512 thermal sensor and an impressive ≤15 mK NETD sensitivity rating this ergonomic monocular delivers crystal-clear images with remarkable detail and contrast.
The lens-integrated laser rangefinder enhances its functionality boasting a maximum detection range of 1200 yards with a remarkable sensitivity of ±1 yard. Its ergonomic design ensures comfortable handling while the intuitive interface allows for seamless operation. VISTA models include electronic image stabilization for a smooth sharp picture on the 2560×2560 round AMOLED display.
Whether you’re scanning for coyotes or conducting night-time surveillance this is your go-to tool for unparalleled thermal imaging performance.
- A lens-integrated laser rangefinder can fire on command or continuously when scanning.
- One-of-a-kind circular ultra-high resolution 1.03-inch 2560×2560 AMOLED display.
- Onboard photo video and audio recording.
- Large ergonomic objective focus dial for precise control.
- New Nocpix IBP-7 removable battery pack with direct USB-C charging.
- 1/4-20 thread socket for quick-plate or tripod mounting.
Share
Specifications
Specifications
| Manufacturer | IRay USA |
|---|---|
| Battery Count | 1 |
| Battery Run Time | 5.5 hr |
| Battery Type | IBP-7 Li-ion Battery Pack |
| Brand | Nocpix |
| Brand Family | Vista |
| CA Prop 65 | Yes |
| Color | Black |
| Condition | New |
| Country of Origin | China |
| Material | Polymer with Rubber Overmolding |
| Microphone | Yes |
| Optics Activation Modes | Manual On/Off |
| Optics Class | Thermal Imaging |
| Optics Objective | 35 |
| Optics Type | Thermal Monocular |
| Thermal Aperture | F0.9 |
| Thermal Core | NOCPIX 640 |
| Thermal Digital Zoom | 8x |
| Thermal Diopter Adj | -4/+6 |
| Thermal Display / Monitor Type | 1.03" Large-format AMOLED |
| Thermal Display Resolution | 2560 x 2560 |
| Thermal Eye Relief | 25mm |
| Thermal FOV Deg | 12.5° × 10.0° |
| Thermal Human Detect Range | 1750 yds |
| Thermal Imaging Palettes | White Black Red Hot Color Violet Crimson Viridian |
| Thermal Magnification | 3x |
| Thermal NETD | <15mK |
| Thermal Objective Lens (Focal Length) | 35mm F/0.9 |
| Thermal Operating Temperature | -4°F to 122°F |
| Thermal Optics Wi-Fi | Yes |
| Thermal PIP Mode | Yes |
| Thermal Power Supply | Charging USB Type C |
| Thermal Rangefinder | Integrated 1200 yd LRF |
| Thermal Recording Type | On-Board Video Photo and Audio |
| Thermal Reticle | Multiple Colors and Patterns |
| Thermal Sensor Frame (Refresh) Rate | 60 Hz |
| Thermal Sensor Pixel Interval | 12 um |
| Thermal Sensor Resolution | 640 x 512 |
| Thermal Standby Mode | <10s Instant from Standby |
| Thermal Storage | 64 GB |
| Warranty | Mfg 5 Year Limited |
| Waterproof | IP67 |
| Weight | 22.58 oz |
