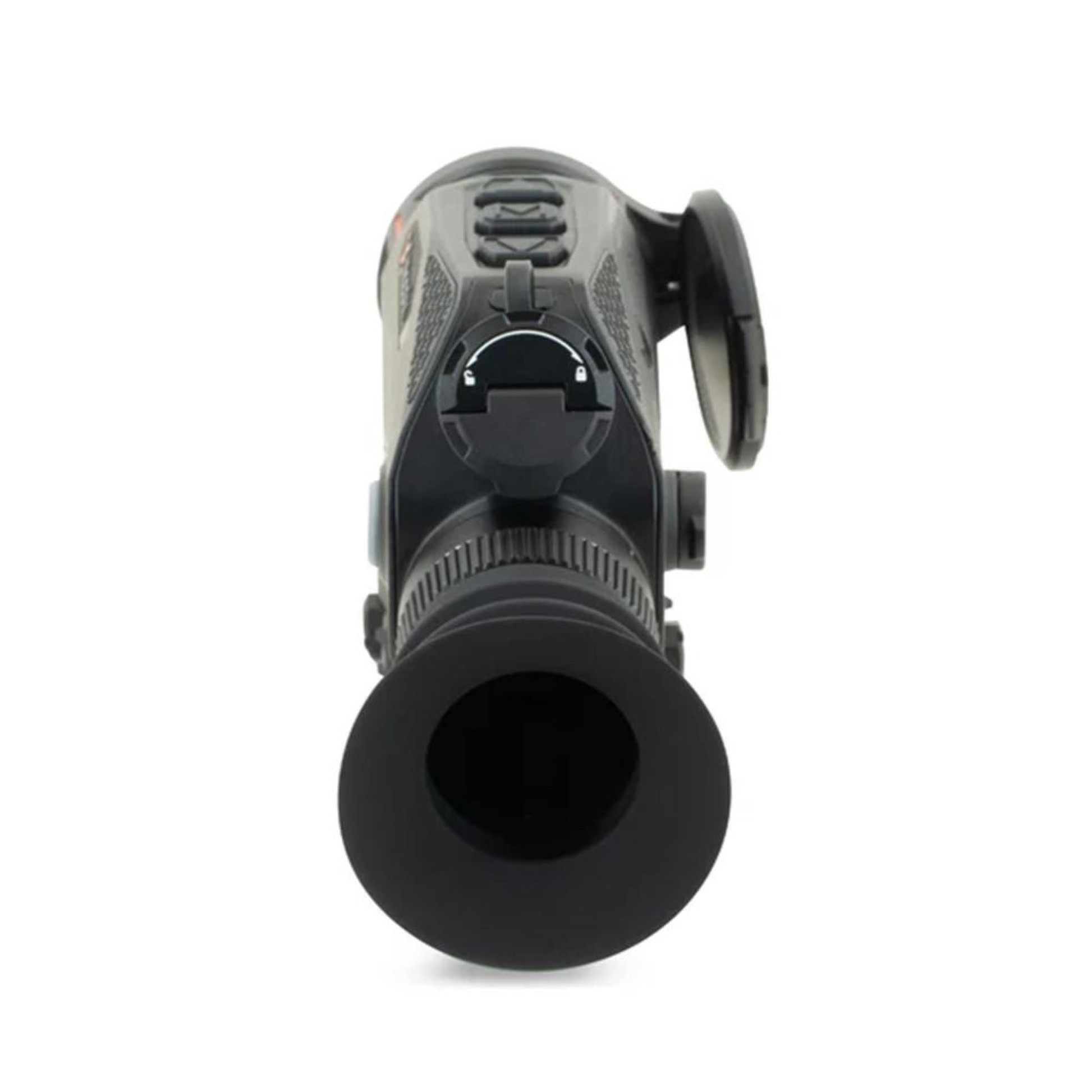

Nocpix Multi-function Thermal Optic 384x288 25 mm
Nocpix Multi-function Thermal Optic 384x288 25 mm
Couldn't load pickup availability
The SLIM series from Nocpix provides the best value and features in a compact optic. Focused on versatility and ease of use SLIM models can be used as either a handheld monocular or a weapon sight. With the included proprietary quick-detach mounting system a hunter can quickly scan and then re-attach the optic to the rifle while maintaining zero. A magnesium alloy body and quiet soft-touch buttons provide excellent ergonomics in both handheld and weapon-mounted configurations. The included IRB-2 batteries (flat-top 18650 style cell) are easy to swap–letting you stay out longer with the ability to charge through the optic using a magnetic cable. Generous eye relief and a 1024×768 AMOLED display provide a comfortable and highly detailed viewing and hunting experience.
- Ambidextrous one-handed design for easy use as a handheld monocular or weapon sight.
- Recoil-activated video automatically records footage before and after a shot.
- High-contrast 1024×768 AMOLED display provides increased clarity and detail.
- Quick-release dual-throw mount with a magnetic alignment aid provides fast and secure return-to-zero (1-MOA) weapon mounting.
- Uses common 18650 style rechargeable batteries.
- Available in high and standard-resolution models.
- Quick secure charging via the magnetic charging port.
Share
Specifications
Specifications
| Manufacturer | IRay USA |
|---|---|
| Battery Type | IBP-7 Li-ion Battery Pack |
| Brand | Nocpix |
| CA Prop 65 | Yes |
| Color | Black |
| Condition | New |
| Material | Magnesium Alloy |
| Optics Length | 8.5" |
| Optics Type | Rifle Scope |
| Thermal Digital Zoom | 4x |
| Thermal Diopter Adj | -5/+5 |
| Thermal Display / Monitor Type | AMOLED |
| Thermal Display Resolution | 1024 x 768 |
| Thermal Eye Relief | 48mm |
| Thermal FOV Deg | 10.5° x 7.9° |
| Thermal Human Detect Range | 1300 yds |
| Thermal Imaging Palettes | White Black Red Hot Color Violet Crimson Viridian |
| Thermal Magnification | 2.5x |
| Thermal NETD | <18mK |
| Thermal Objective Lens (Focal Length) | 25mm F/1.0 |
| Thermal Operating Temperature | -4°F~122°F |
| Thermal PIP Mode | Yes |
| Thermal Reticle | 8 |
| Thermal Sensor Frame (Refresh) Rate | 50 Hz |
| Thermal Sensor Pixel Interval | 12 um |
| Thermal Sensor Resolution | 384 x 288 |
| Thermal Storage | 32 GB |
| Warranty | Mfg 5 Year |
| Waterproof | IP67 |
