NOCPIX Compact Thermal Monocular 384 35 mm
NOCPIX Compact Thermal Monocular 384 35 mm
Couldn't load pickup availability

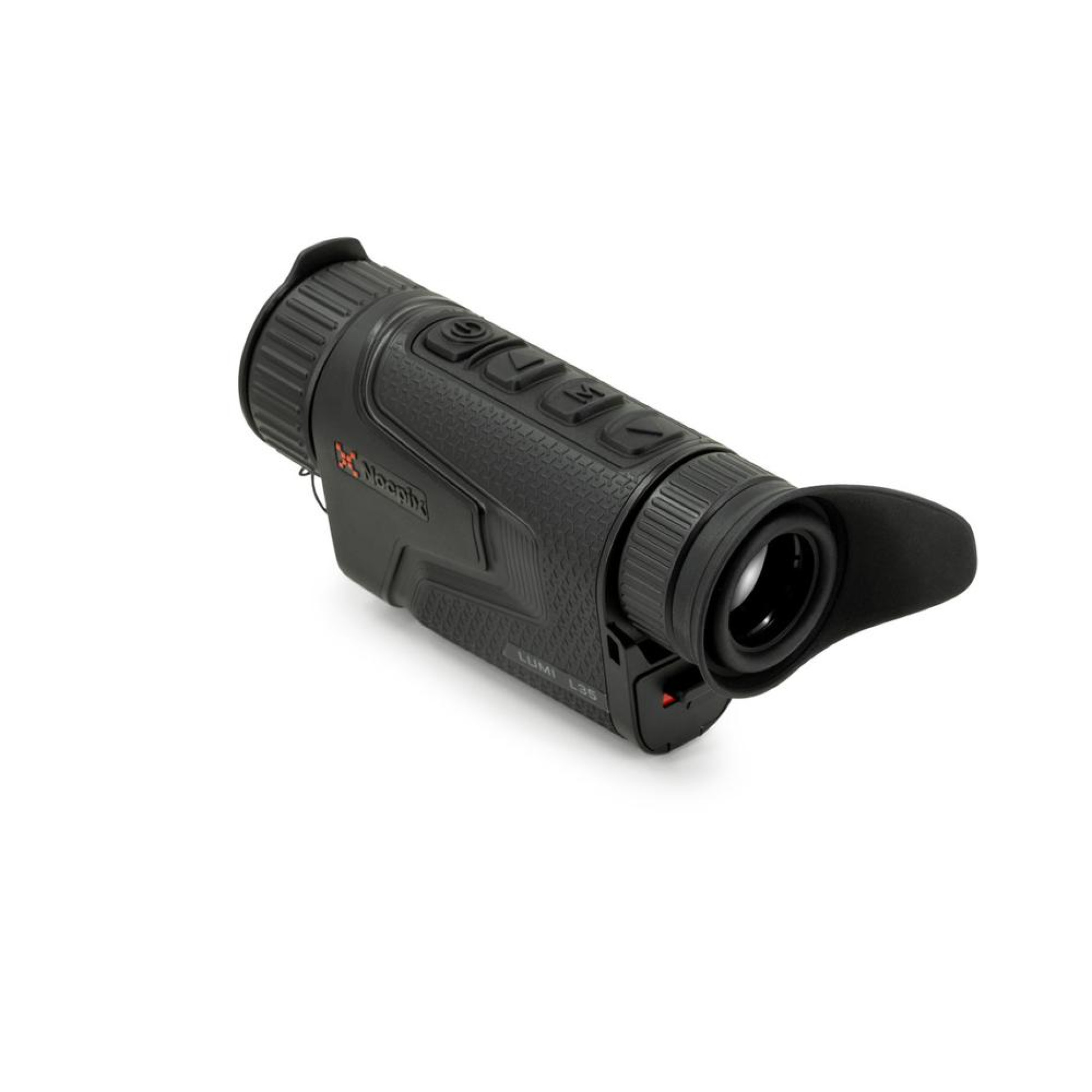

The InfiRay NOCPIX LUMI brings the power of thermal observation devices to a compact and user-friendly form-factor for hunters on-the-go. The all-new LUMI series of handheld thermal monoculars features a high quality thermal sensor available in 384x288 (L35) or 640x512 (H35) paired with a 1024x768 AMOLED display. Available models offer either a 2.5x base magnification (H35) for a wider field of view or a 4x base magnification (L35) for identifying targets at greater distances.
Our advanced Reality+ image processing algorithm and a ≤18 mK NETD (thermal sensitivity) rating provide sharp high-contrast images. Powering the LUMI is simple and affordable using common interchangeable 18650 style batteries. As a powerful tool for scouting and scanning LUMI was designed to be as compact and ergonomic as possible while still offering impressive image detail and clarity; LUMI weighs 12 ounces and easily fits in the palm of the hand a pocket or the included MOLLE-compatible case.
- Lightweight and compact design easily fits in a pocket or the include MOLLE-compatible pouch.
- Weatherproof rubberized texture increases durability and is not cold to the touch.
- Powered by a common 18650 style rechargeable battery with a spare battery included.
- Advanced R+ image processing provides enhances image quality during digital zoom.
- Onboard photo video and audio recording.
- Comfortable ambidextrous vertical design.
Share
Specifications
Specifications
| Manufacturer | IRay USA |
|---|---|
| Battery Run Time | 4 hr |
| Battery Type | 18650 Rechargeable |
| Brand | Nocpix |
| Brand Family | Lumi |
| CA Prop 65 | Yes |
| Color | Black |
| Condition | New |
| Country of Origin | China |
| Material | Polymer with Rubber Overmolding |
| Microphone | Yes |
| Optics Activation Modes | <10 Seconds - Instant from Standby |
| Optics App Support | Yes |
| Optics Class | Thermal Imaging |
| Optics Type | Thermal Monocular |
| Thermal Aperture | F0.9 |
| Thermal Core | NOCPIX 640 |
| Thermal Digital Zoom | 4x |
| Thermal Diopter Adj | -5/+5 |
| Thermal Display / Monitor Type | AMOLED |
| Thermal Display Resolution | 1024 x 768 |
| Thermal Eye Relief | 25mm |
| Thermal FOV Deg | 12.5° x 9.7° |
| Thermal Human Detect Range | 1800 yds |
| Thermal Imaging Palettes | White Black Red Hot Color Violet Crimson Viridian |
| Thermal Magnification | 2.5-20x |
| Thermal NETD | <18mK |
| Thermal Objective Lens (Focal Length) | 35mm |
| Thermal Optics Wi-Fi | Yes |
| Thermal PIP Mode | Yes |
| Thermal Power Supply | USB-C External / 18650 Battery |
| Thermal Rangefinder | No |
| Thermal Recording Type | On-Board Video Photo and Audio |
| Thermal Scene Modes | Field / Forest |
| Thermal Sensor Frame (Refresh) Rate | 50 Hz |
| Thermal Sensor Pixel Interval | 12 um |
| Thermal Sensor Resolution | 640 x 512 |
| Thermal Standby Mode | Yes |
| Thermal Storage | 32 GB |
| Warranty | Mfg 5 Year |
| Waterproof | IP67 |
| Weight | 11.82 oz |
