Infiray Hybrid Compact 3.5x 640×480 LRF 50mm
Infiray Hybrid Compact 3.5x 640×480 LRF 50mm
Couldn't load pickup availability

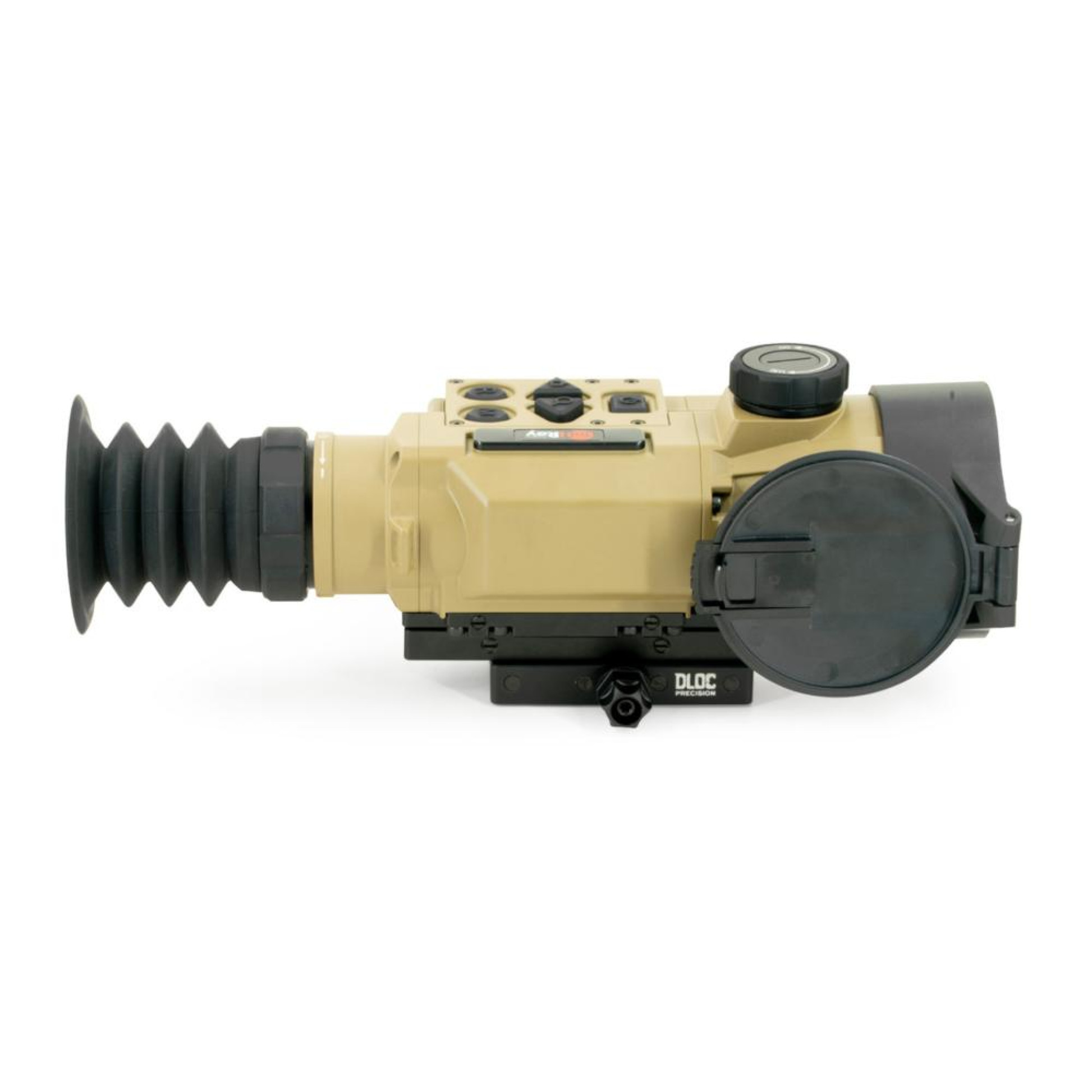

The iRAY Hybrid Compact (HCH50R) is the next evolution of the HYBRID series combining advanced thermal performance with versatile functionality. It features a 50 mm F/0.9 lens and the industry’s first available 10 µm thermal sensor. The 640×480 InfiRay sensor with a ≤15 mK NETD rating delivers exceptional thermal sensitivity and clarity.
The Hybrid Compact functions as a weapon sight thermal clip-on or handheld monocular. Its 3.5x native magnification and 60mm eye relief provide a comfortable immersive view. The “Fast Engine” low-latency architecture (15 ms) and 60 Hz refresh rate ensure a smooth life-like image improving target tracking and accuracy. A 1440×1080 AMOLED display provides a crisp image while the integrated laser rangefinder and ballistic calculator adjust for drop based on target distance. Built-in photo and video recording with 64GB of internal storage lets you capture every detail.
Share
Specifications
Specifications
| Manufacturer | IRay USA |
|---|---|
| Battery Count | 2 |
| Battery Run Time | 7 hr |
| Battery Type | 18650 Rechargeable (Two Nitecore USB-C cells included) |
| Brand | InfiRay |
| Brand Family | Hybrid |
| CA Prop 65 | Yes |
| Color | Cerakote Tan H-235 |
| Condition | New |
| Optics Class | Thermal Imaging |
| Optics Mounting System | DLOC Precision Picatinny Rail Mount |
| Optics Type | Thermal Rifle Scope |
| Thermal Digital Zoom | 8x |
| Thermal Diopter Adj | -5 - +2 |
| Thermal Display / Monitor Type | AMOLED |
| Thermal Display Resolution | 1440 x 1080 |
| Thermal FOV Deg | 7.3° x 5.5° |
| Thermal Human Detect Range | 3060 yds |
| Thermal Imaging Palettes | White Black Red Hot Color Violet Crimson Viridian |
| Thermal Magnification | 3.5x |
| Thermal Operating Temperature | -25°F ? 122°F |
| Thermal PIP Mode | Yes |
| Thermal Recording Type | On-Board Video and Still Images |
| Thermal Sensor Frame (Refresh) Rate | 50 Hz |
| Thermal Sensor Pixel Interval | 10 um |
| Thermal Sensor Resolution | 640 x 480 |
| Thermal Standby Mode | Yes |
| Thermal Storage | 64 GB |
| Warranty | Mfg 5 Year |
| Waterproof | IP67 |
| Weight | 25.56 oz |
