Burris Company Inc.

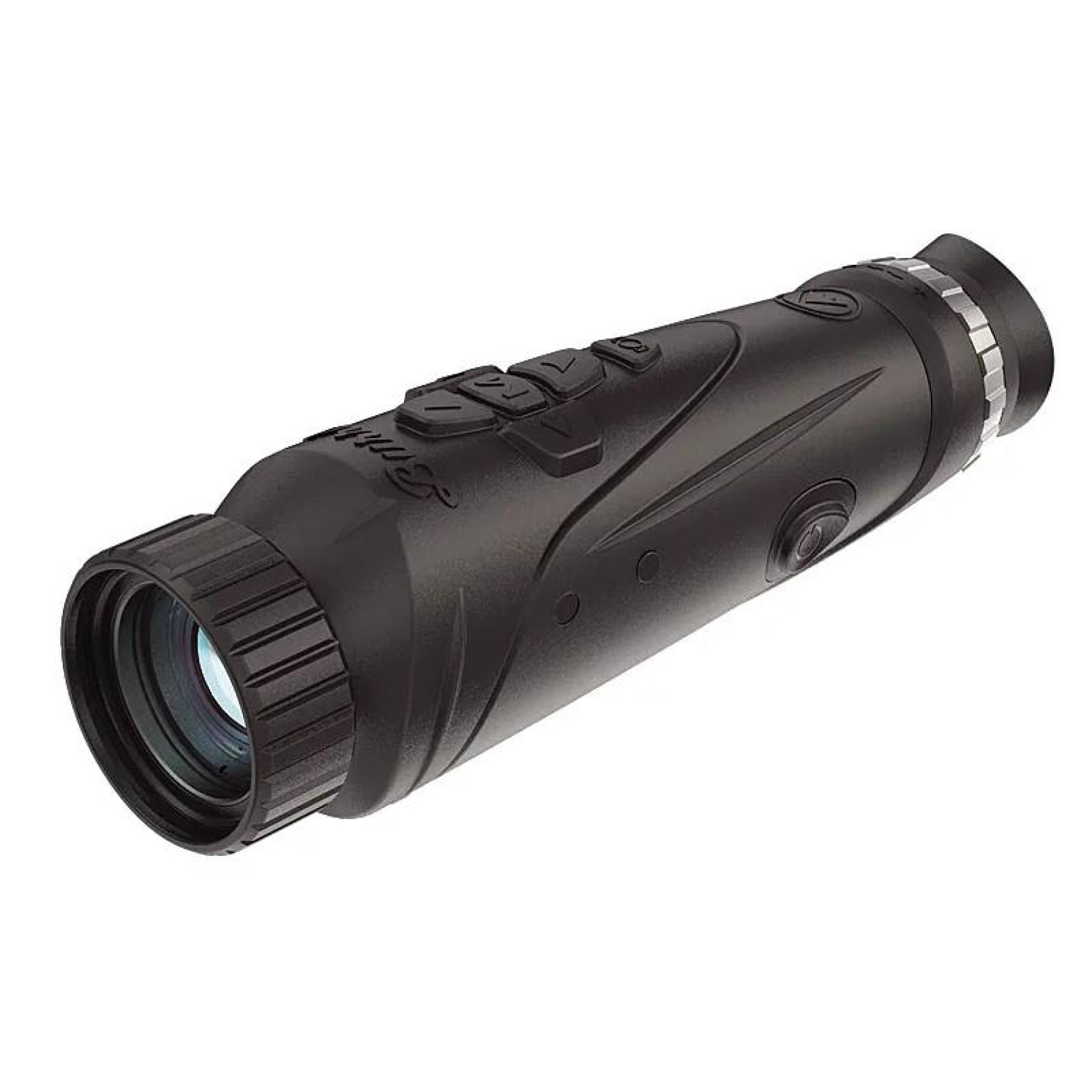

Burris Thermal BTH35 V2
Burris Thermal BTH35 V2
Couldn't load pickup availability
With a modern lightweight design the Burris Thermal Handheld has the ability to hot track targets over 750 yards away. The smooth zoom and real time wifi-to-mobile connection keeps you locked on your target. Connection allows you to control and record the handheld from your mobile phone.
When the PIP window image is on a 2x magnification of the main image is in the display. The user has the option to place the PIP window in the upper left/middle/right area of the display.
A ballistics powerhouse at your fingertips the BurrisConnect app was built to be the solution for operating the Veracity PH live media sharing on Burris Thermal and the go-to ballistics tool for every shooter. BurrisConnect offers users the latest in bullet data to build DOPE cards reticle maps Eliminator data tables and custom rifle profiles. From seasoned long-range competition enthusiasts to those just getting their first rifle zeroed. The ever-evolving BurrisConnect app gives you everything you need to get dialed in.
APP CONNECTIVITY
- Real-time video streaming and photo capture capability
- Remote control of numerous device settings
SENSOR RESOLUTION (CORE) 400X300 VOX SENSOR W/50HZ REFRESH RATE & 12µM PIXEL PITCH
- Next-gen IR imaging performance from new 12µm pixel pitch sensor allows high performance with smaller lighter objective lenses
- Clear and crisp imaging with high performance 35mm F1.0 lens
Generous FOV for both models
- BTH35 v2 has an FOV of 7.8°x5.9°
- BTH19 v2 has an FOV of 14.4°x10.8° 3.
OTHER FEATURES
- Refreshed UI and menu system allow for intuitive navigation with support for 10 languages (English Italian Spanish German French Russian Finnish Swedish Danish Polish)
- All user touchpoints (Buttons Focus Ring Diopter Ring Eye Cups) have been optimized to provide a more comfortable natural-feeling product operation especially while wearing gloves
- Waterproof protection
- All handheld units include accessory M1913 Picatinny accessory rails
Share
Specifications
Specifications
| Manufacturer | Burris Company Inc. |
|---|---|
| Battery Run Time | +/-5 hr @25°C |
| Battery Type | Lithium-Ion |
| Brand | Burris |
| Brand Family | BTH35 v2 |
| CA Prop 65 | Yes |
| Color | Black |
| Condition | New |
| Optics App Support | BurrisConnect App |
| Optics Class | Range Finding |
| Optics Mounting System | 1/4-20 |
| Optics Type | Thermal Handheld Monocular |
| Thermal Digital Zoom | 1x-4x |
| Thermal Diopter Adj | -4/+4 |
| Thermal Display / Monitor Type | LCOS |
| Thermal Display Resolution | 1280 x 960 |
| Thermal Eye Relief | 17mm |
| Thermal Imaging Palettes | White Black Red Green Blue Hot |
| Thermal Objective Lens (Focal Length) | 35mm F/1.0 |
| Thermal Optics Wi-Fi | Yes |
| Thermal PIP Mode | Yes |
| Thermal Power Supply | USB-C External |
| Thermal Rangefinder | 750 yds |
| Thermal Sensor Frame (Refresh) Rate | 50 Hz |
| Thermal Sensor Pixel Interval | 12 um |
| Thermal Sensor Resolution | 400 x 300 |
| Thermal Storage | None |
| Warranty | Mfg Lifetime |
| Waterproof | Yes |
| Weight | 22 oz |
