American Technologies Network

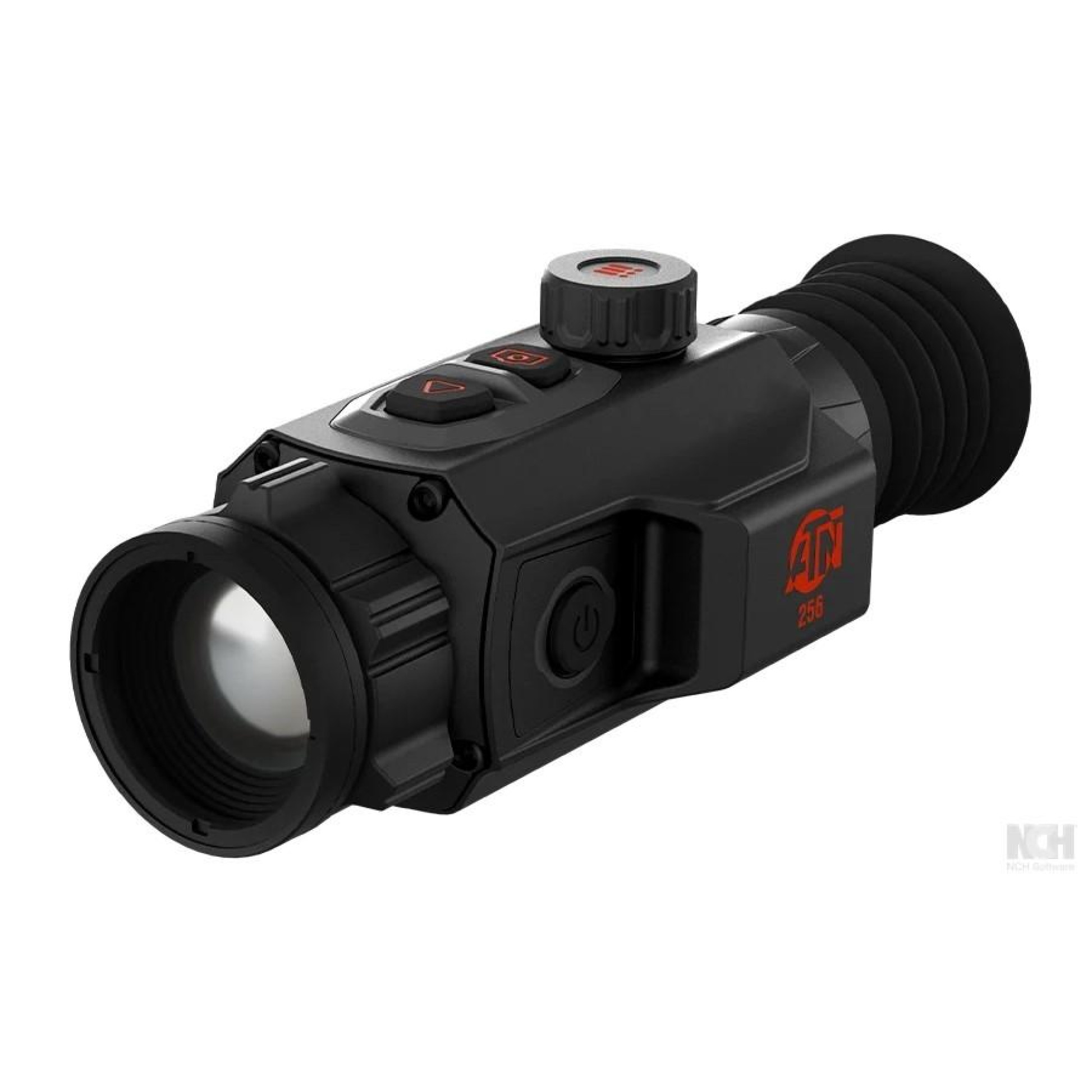

ATN ThOR 6 mini Compact Thermal scope 3.5?28x 256×192
ATN ThOR 6 mini Compact Thermal scope 3.5?28x 256×192
Regular price
$1,095.00
Regular price
$0.00
Sale price
$1,095.00
Quantity
Couldn't load pickup availability
Fast Shipping
Secure Checkout
Licensed FFL Dealer
Powered by a 12μm thermal core the ATN ThOR 6 mini comes in three configurations: 256×192 (≤20 mK NETD Enhanced Sensitivity) 384×288 and 640×512 (≤18 mK NETD High Sensitivity). This gives you the flexibility to choose the resolution that matches your hunting style environment and engagement range. Whether you’re scanning wide-open fields or weaving through dense brush the advanced NETD ratings reveal even the faintest heat signatures - like a hog bedded in cover or a coyote slipping through early morning fog. Expect higher contrast sharper detail and faster target acquisition in the harshest conditions.
Included :
- Thermal Scope Mount
- 1 x 18650 Battery
- Lens Cloth
- USB Type-C Cable
- Quick Start Guide
- Battery Charger
- Portable Bag
- Heated Target for Zeroing
Share
Specifications
Specifications
| Manufacturer | American Technologies Network |
|---|---|
| Battery Count | 1 |
| Battery Run Time | 50000 hr |
| Battery Type | 18650 Rechargeable |
| Brand | ATN |
| Brand Family | Thor 6 |
| CA Prop 65 | Yes |
| Color | Black |
| Condition | New |
| Material | Magnesium Alloy |
| Optics Class | Thermal Imaging |
| Optics Type | Thermal Rifle Scope |
| Thermal Detector Type | 12um VOx Uncooled Focal Plane Array |
| Thermal Digital Zoom | 1x 2x 4x 8x |
| Thermal Diopter Adj | -5/+5 |
| Thermal Display / Monitor Type | OLED |
| Thermal Display Resolution | 800 x 600 |
| Thermal Eye Relief | 50mm |
| Thermal FOV Deg | 11.7° x 8.8° |
| Thermal Human Detect Range | 1200 yds |
| Thermal Imaging Palettes | White Black Green Hot Iron Red Alarm Sepia |
| Thermal Magnification | 2-16x |
| Thermal NETD | <20 mk |
| Thermal Objective Lens (Focal Length) | 15mm F/1.0 |
| Thermal Operating Temperature | -30°C to +55°C (-22°F to +131°F) |
| Thermal Power Supply | Supports External Power Via USB Type-C 5 VDC / 2 A |
| Thermal Rangefinder | Yes |
| Thermal Recording Type | On-Board Video and Audio |
| Thermal Reticle | 10 |
| Thermal Sensor Pixel Interval | 12 um |
| Thermal Sensor Resolution | 256 x 192 |
| Thermal Storage | 16 GB |
| Warranty | Mfg Lifetime |
| Waterproof | IP67 |
