American Technologies Network

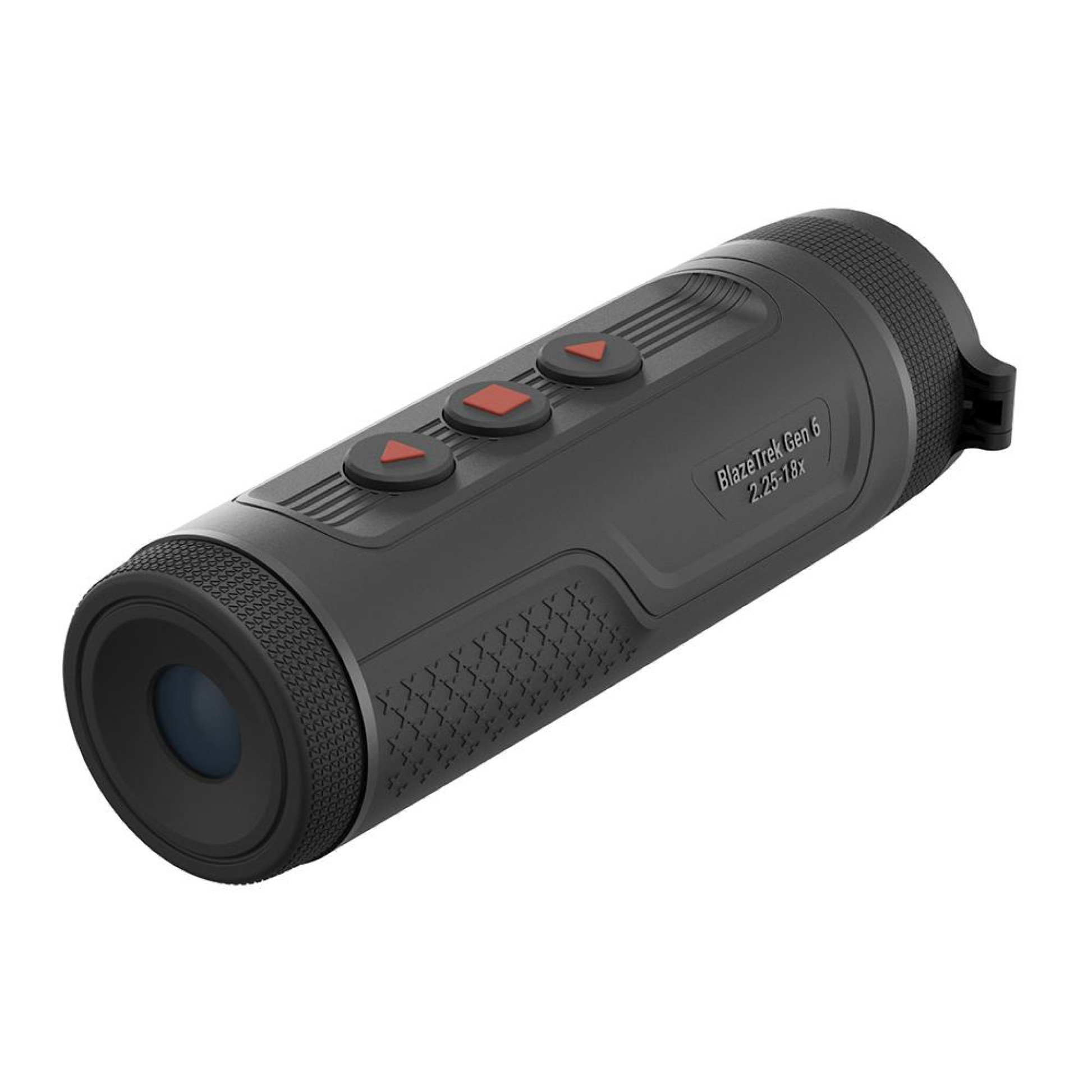

ATN BlazeTrek-319 Thermal Mono 12 Micron 384x288 <20 NETD 2.25-18x
ATN BlazeTrek-319 Thermal Mono 12 Micron 384x288 <20 NETD 2.25-18x
Regular price
$1,005.36
Regular price
$0.00
Sale price
$1,005.36
Quantity
Couldn't load pickup availability
Fast Shipping
Secure Checkout
Licensed FFL Dealer
The advanced thermal sensor offers resolutions of 384x288 and 640x512 (50 Hz) with a 12 μm pixel size and an exceptional NETD rating of <18mK enhancing sensitivity to temperature variations for improved image clarity.
Select from six color palettes to customize your viewing experience: White Hot Black Hot Iron Red Alarm Green Hot & Sepia.
Easily fits in a pocket for convenient portability allowing you to take it anywhere you go.
Adjust the monocular for different users using the diopter adjustment wheel ensuring a clear and sharp image for each viewer.
Built-in rechargeable battery with up to 8 hours of operation time and external power supply option.
Share
Specifications
Specifications
| Manufacturer | American Technologies Network |
|---|---|
| Battery Count | 1 |
| Battery Run Time | 8 hr |
| Battery Type | Rechargeable |
| Brand | ATN |
| Brand Family | Blaze Trek |
| CA Prop 65 | Yes |
| Color | Black |
| Condition | New |
| Country of Origin | USA |
| Material | Polymer |
| Microphone | Yes |
| Optics App Support | ATN Connect 6 App |
| Optics Class | Thermal Imaging |
| Optics Finish | Matte |
| Optics Length | 6.2" |
| Optics Mounting System | Not Included |
| Optics Objective | 19 |
| Optics Shockproof | Yes |
| Optics Type | Thermal Monocular |
| Thermal Bluetooth | No |
| Thermal Boresight Adj | Digital Controlled |
| Thermal Detector Type | 12um VOx Uncooled Focal Plane Array |
| Thermal Digital Zoom | 1x 2x 4x 8x |
| Thermal Display / Monitor Type | OLED |
| Thermal Display Resolution | 800 x 600 |
| Thermal Eye Relief | 15mm |
| Thermal Flat Field Correction | Auto / Semi-Auto / Manual |
| Thermal FOV Deg | 14.4° x 10.8° |
| Thermal Human Detect Range | 990 yds |
| Thermal Human ID Range | 104 yds |
| Thermal Imaging Palettes | White Black Green Hot Iron Red Alarm Sepia |
| Thermal Magnification | 2.25-18x |
| Thermal Multi-Language Menu | Yes |
| Thermal NETD | <18mK |
| Thermal Objective Lens (Focal Length) | 19mm |
| Thermal Operating Temperature | -30°C to 55°C (-22°F to 131°F) |
| Thermal Optics Wi-Fi | Yes |
| Thermal PIP Mode | Yes |
| Thermal Power Supply | USB-C External |
| Thermal Rangefinder | Laser |
| Thermal Recording Type | On-Board Video and Photo |
| Thermal Sensor Resolution | 384 x 288 |
| Thermal Snapshot Capture | Yes |
| Thermal Standby Mode | Yes |
| Thermal Storage | 32 GB |
| Thermal Temp Spot Tracking | yes |
| Warranty | Mfg 5 Year Limited |
| Waterproof | Yes |
| Weight | 11.2 oz |
