ATN BlazeSeeker 210 Thermal Monocular 12 Micron
ATN BlazeSeeker 210 Thermal Monocular 12 Micron
Couldn't load pickup availability
The ATN Blaze Seeker 210 Thermal Monocular equipped with a high-quality thermal sensor offering a 256x192 (25 Hz) resolution 12 μm pixel size and a low NETD rating of <35mK for enhanced temperature sensitivity and improved image clarity.
Choose from five color palettes for a custom viewing experience: White Hot Black Hot Rainbow Iron Red and Alarm.

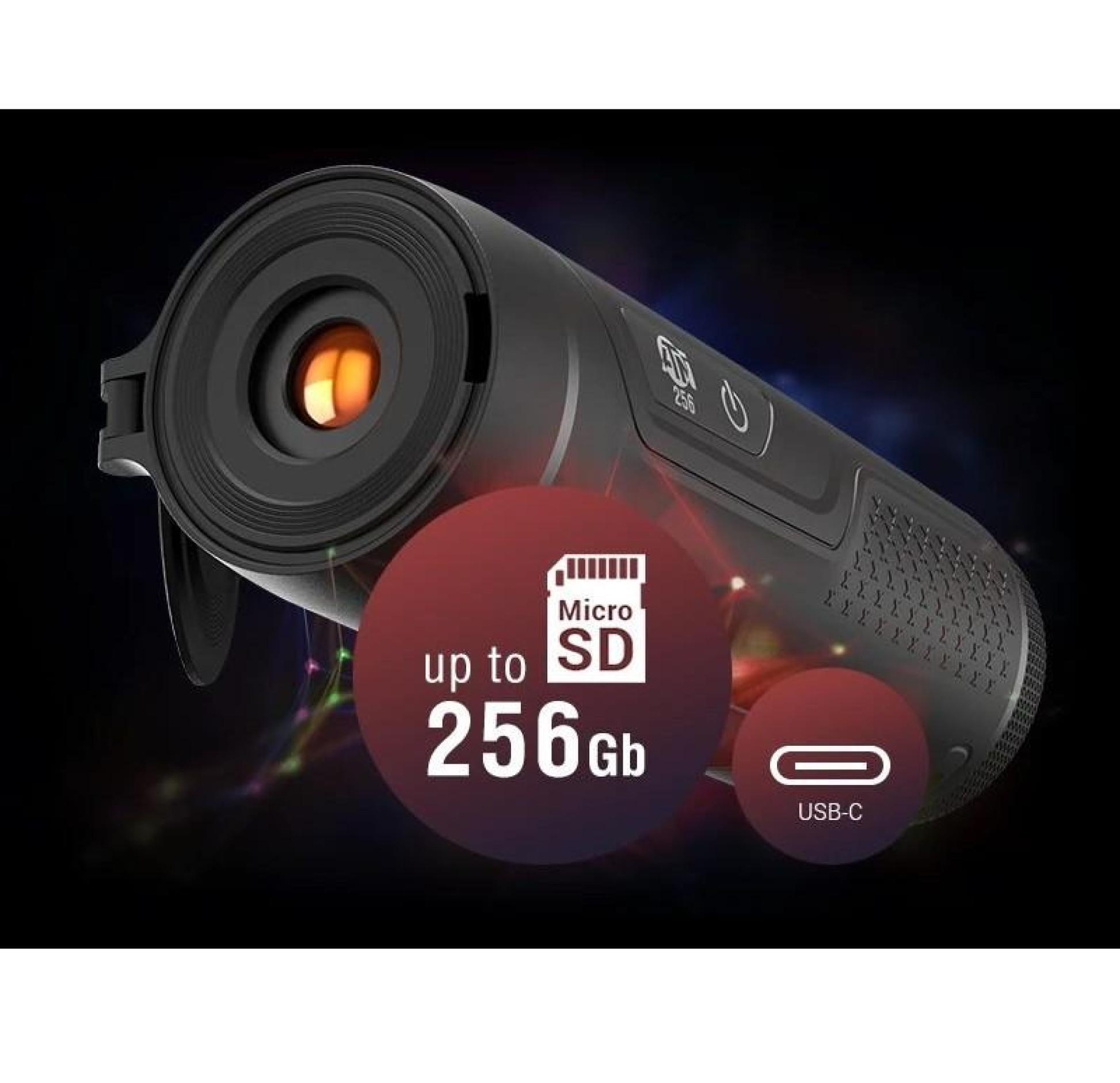

Offers integrated features for capturing still images and recording video with the option to save media on a MicroSD card with up to 256GB of storage.
Easily fits in a pocket for convenient portability allowing you to take it anywhere you go.
Adjust the monocular for different users using the diopter adjustment wheel ensuring a clear and sharp image for each viewer.
Built-in rechargeable battery with up to 9 hours of operation time and external power supply option.
Share
Specifications
Specifications
| Manufacturer | American Technologies Network |
|---|---|
| Battery Count | 1 |
| Battery Run Time | 1.5 hr or 9 hr |
| Battery Type | Rechargeable |
| Brand | ATN |
| Brand Family | Blaze Seeker |
| CA Prop 65 | Yes |
| Color | Black |
| Condition | New |
| Country of Origin | USA |
| Material | Aluminum |
| Optics App Support | ATN Blaze App |
| Optics Class | Thermal Imaging |
| Optics Finish | Anodized |
| Optics Length | 5.9" |
| Optics Mounting System | Not Included |
| Optics Objective | 10 |
| Optics Shockproof | Yes |
| Optics Type | Thermal Monocular |
| Thermal Bluetooth | Yes |
| Thermal Core | ATN Obsidian Core LT |
| Thermal Detector Type | 12um Uncooled 50 Hz < 35 mK (25°C F# = 1.0) |
| Thermal Display / Monitor Type | LCOS |
| Thermal Display Resolution | 720 x 540 |
| Thermal Eye Relief | 12.5mm |
| Thermal Human Detect Range | 460 yds |
| Thermal Human ID Range | 53 |
| Thermal Human Recog Range | 105 |
| Thermal Imaging Palettes | White Black & Green Hot / Iron Red / Alarm / Sepia |
| Thermal Magnification | 1-8x |
| Thermal Operating Temperature | -20°C to 55°C (-4°F to 131°F) |
| Thermal PIP Mode | Yes |
| Thermal Power Supply | Charging USB Type C |
| Thermal Recording Type | On-Board Video and Still Images |
| Thermal Sensor Frame (Refresh) Rate | 25 Hz |
| Thermal Sensor Pixel Interval | 12 um |
| Thermal Sensor Resolution | 256 x 192 |
| Thermal Snapshot Capture | Yes |
| Thermal Standby Mode | Yes |
| Thermal Storage | 256 GB |
| Thermal Video Recording Resolution | 800x600 |
| Warranty | Mfg 3 Year Limited |
| Waterproof | IP56 |
| Weight | 9.6 oz |
