ATN BlazeSeeker 207 Thermal Monocular 12 Micron
ATN BlazeSeeker 207 Thermal Monocular 12 Micron
Couldn't load pickup availability
The ATN Blaze Seeker 207 is equipped with a high-quality thermal sensor offering a 256x192 (25 Hz) resolution 12 μm pixel size and a low NETD rating of <35mK for enhanced temperature sensitivity and improved image clarity.
Choose from five color palettes for a custom viewing experience: White Hot Black Hot Rainbow Iron Red and Alarm.

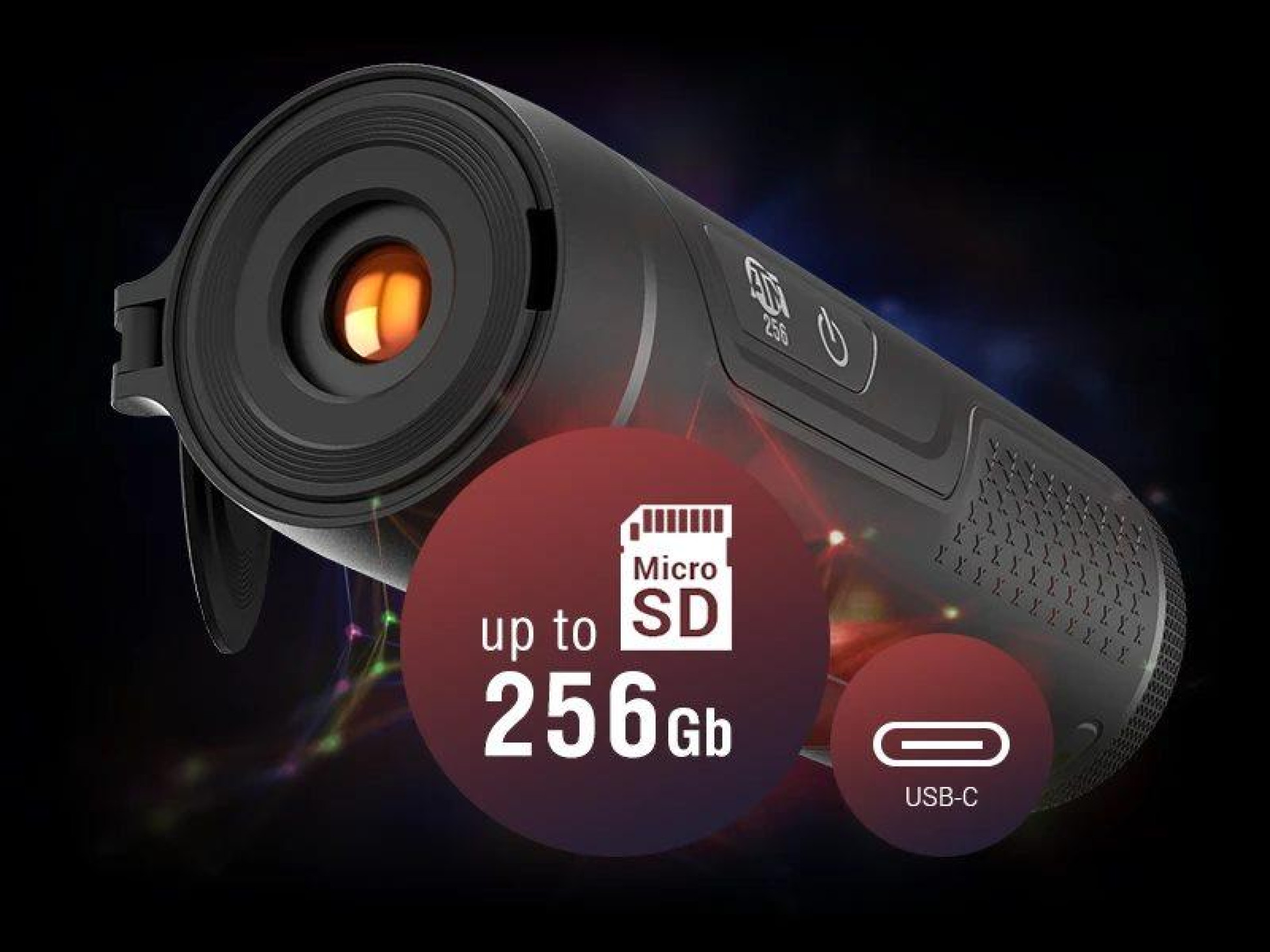

Offers integrated features for capturing still images and recording video with the option to save media on a MicroSD card with up to 256GB of storage.
Connect the monocular wirelessly to your smartphone and app to adjust settings capture photos or record thermal videos directly from your phone.
Adjust the monocular for different users using the diopter adjustment wheel ensuring a clear and sharp image for each viewer.
Easily fits in a pocket for convenient portability allowing you to take it anywhere you go.
Built-in rechargeable battery with up to 9 hours of operation time and external power supply option.
Share
Specifications
Specifications
| Manufacturer | American Technologies Network |
|---|---|
| Battery Count | 1 |
| Battery Run Time | 9 hr |
| Battery Type | Rechargeable |
| Brand | ATN |
| Brand Family | Blaze Seeker |
| CA Prop 65 | Yes |
| Color | Black |
| Condition | New |
| Country of Origin | USA |
| Material | Aluminum |
| Optics App Support | ATN Blaze App |
| Optics Class | Thermal Imaging |
| Optics Finish | Anodized |
| Optics Length | 5.9" |
| Optics Mounting System | Not Included |
| Optics Objective | 7 |
| Optics Shockproof | Yes |
| Optics Type | Thermal Handheld Monocular |
| Thermal Bluetooth | Yes |
| Thermal Core | ATN Obsidian Core LT |
| Thermal Detector Type | 12um Uncooled 50 Hz |
| Thermal Diopter Adj | Yes |
| Thermal Display / Monitor Type | LCOS |
| Thermal Display Resolution | 256 x 192 |
| Thermal Eye Relief | 12.5mm |
| Thermal FOV Deg | 24° x 18° |
| Thermal Human Detect Range | 345 yds |
| Thermal Human ID Range | 38 |
| Thermal Imaging Palettes | White Black & Green Hot / Iron Red / Alarm / Sepia |
| Thermal Objective Lens (Focal Length) | 75 mm; F1.2 |
| Thermal Operating Temperature | -4°F to +131°F / -20°C to 55°C |
| Thermal Optics Wi-Fi | Yes |
| Thermal Power Supply | Charging USB Type C |
| Thermal Recording Type | On-Board Video and Still Images |
| Thermal Sensor Frame (Refresh) Rate | 50 Hz |
| Thermal Sensor Pixel Interval | 12 um |
| Thermal Sensor Resolution | 256 x 192 |
| Thermal Snapshot Capture | Yes |
| Thermal Standby Mode | Yes |
| Thermal Storage | 256 GB |
| Thermal Video Recording Resolution | 800x600 |
| Warranty | Mfg 3 Year Limited |
| Waterproof | IP67 |
| Weight | 9.6 oz |
