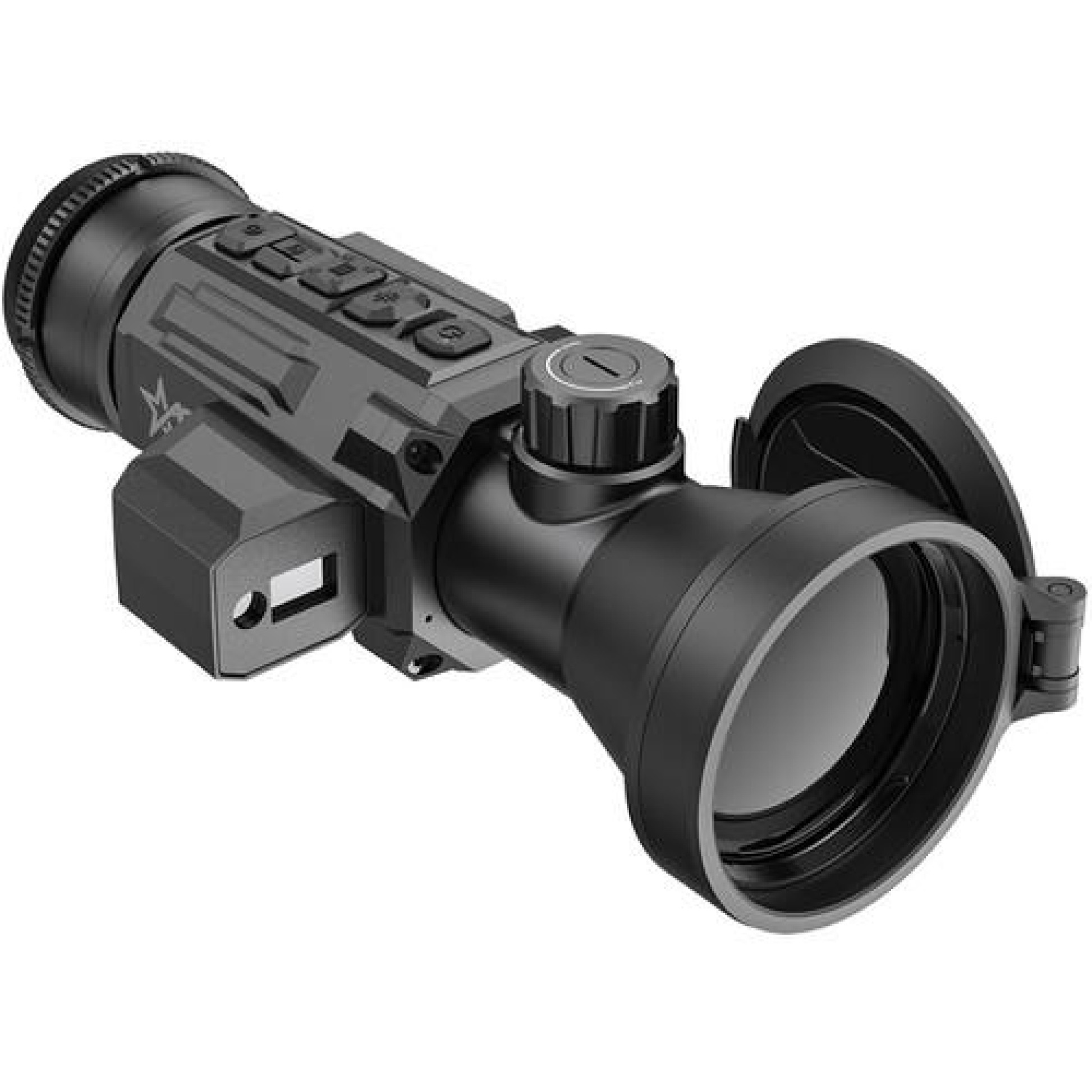

AGM Secutor LRF-C 75-640 Pro Grade Thermal Clip-On 12 Micron 640x512 75mm
AGM Secutor LRF-C 75-640 Pro Grade Thermal Clip-On 12 Micron 640x512 75mm
Couldn't load pickup availability
The AGM Secutor LRF-C is a compact thermal imaging clip-on system with built-in precision laser rangefinder that allows quick transformation of the day optics into thermal imaging device without any special tools or equipment. Equipped with a highly sensitive 12μm thermal detector and 1024×768 OLED monitor the AGM Secutor LRF-C provides a clear image under harsh environmental conditions including darkness fog smoke dust rain snow brush camouflage etc.
The user-friendly interface comfortable and ergonomic operating controls makes Secutor LRF-C use incredibly easy. The Secutor LRF-C can easily be attached in front of rifle scopes with magnification up to 10x for medium range use.
The built-in laser range finder of the AGM Secutor LRF-C is designed to determine the exact distance between the observer and the target. Measurement results are displayed in the scopes monitor.
Four replaceable Li-Ion battery gives the device more than 6 hours of continuous operation time. An external 5V power bank (battery pack) can be easily connected via a USB to USB-C connector for a significant increase of operating time. The device is equipped with fast EMMC storage for on-board video/audio recording and image capture. Onboard Wi-Fi module allows live video streaming and video/image recording via mobile applications.
- Quick conversion of daytime optics into thermal imaging scope
- 12μm thermal detector
- High sensitivity (NETD less than 20 mK)
- Fast 50Hz imaging
- Built-in laser rangefinder
- Adjustable color palettes
- High resolution OLED display
- On-board video/audio recording and image capture
- Built-in EMMC storage (16 GB)
- Wi-Fi data transmission
- Standby mode
- More than 6 hours battery life
- External power supply compatibility
- Waterproof & shockproof
- 5-year warranty
Share
Specifications
Specifications
| Manufacturer | AGM Global Vision |
|---|---|
| Battery Count | 4 |
| Battery Type | CR123A |
| Brand | AGM |
| Brand Family | Secutor LRF |
| CA Prop 65 | Yes |
| Color | Black |
| Condition | New |
| Optics App Support | AGM Connect |
| Optics Class | Thermal Imaging |
| Optics Shockproof | Yes |
| Optics Type | Thermal Clip-On |
| Thermal Detector Type | 12um VOx Uncooled Focal Plane Array |
| Thermal Display / Monitor Type | 0.39" OLED |
| Thermal Flat Field Correction | Auto / Manual / External Correction |
| Thermal FOV Deg | 5.9° x 4.7° |
| Thermal Human Detect Range | 3200 yds |
| Thermal Imaging Palettes | White Black Red Hot Fusion |
| Thermal NETD | <20 mk |
| Thermal Objective Lens (Focal Length) | 75 mm; F1.2 |
| Thermal Operating Temperature | -30°C to +55°C (-22°F to +131°F) |
| Thermal Optics Wi-Fi | Yes |
| Thermal PIP Mode | Yes |
| Thermal Power Supply | 5 VDC/2 A USB Type-C |
| Thermal Rangefinder | Up to 1000m ±4m accuracy |
| Thermal Recording Type | On-Board Video and Audio & Still Images |
| Thermal Response Waveband | 8um to 14um |
| Thermal Sensor Frame (Refresh) Rate | 50 Hz |
| Thermal Sensor Pixel Interval | 12 um |
| Thermal Sensor Resolution | 640 x 512 |
| Thermal Snapshot Capture | Yes |
| Thermal Standby Mode | Yes |
| Thermal Storage | Built-in EMMC (16 GB) |
| Thermal Video Recording Resolution | Yes |
| Warranty | Mfg 5 Year |
| Waterproof | IP67 |
| Weight | 0.75 kg (1.65 lb) |
