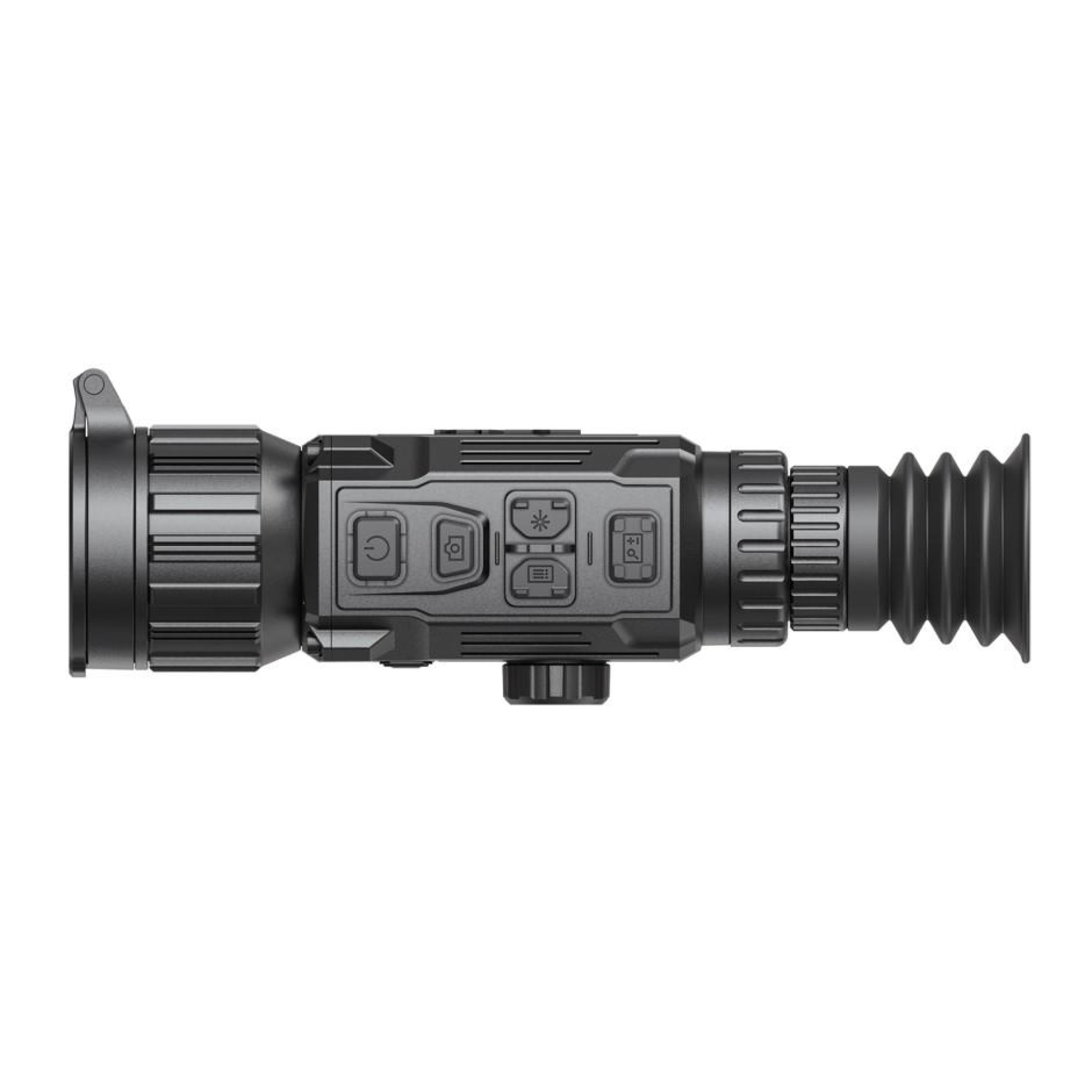

AGM RattlerV3 LRF 35-640
AGM RattlerV3 LRF 35-640
Couldn't load pickup availability
Although it seems like just yesterday the celebrated AGM Rattler thermal riflescope family got upgraded with the introduction of the RattlerV2’s the RattlerV3 LRF testifies to the fact that evolution never stops. The RattlerV3 LRF 35-640 pairs a 35 mm Germanium lens with an industry-leading sub-15mK thermal sensor and a 2560x2560 high resolution display which combines to produce the best 640 resolution thermal image. These technical parameters work together to produce a detection range 1.5 miles.
The RattlerV3 LRF also brings the once inconceivable new in-lens LRF technology to the compact Rattler series. A fully integrated 1000m laser rangefinder is paired with a new on-board ballistic calculator. An updated designed eyepiece gives the RattlerV3 LRF 35-640 a base magnification of 2.5X making it an optimal option for predator hunters in wide-open terrain which entices longer range engagements. Its also the first Rattler ever to come with a shutterless NUC and AGM’s powerful new Image Boost 2.0 imaging algorithm. Large sturdy buttons were designed to aid gloved fingers in cold winter weather while the removable rechargeable NE-4400 battery offers one of the most robust and easy to install battery systems on the market.
The firmware package allows users an amazing level of customization: on-board pitch scale 10 brightness and contrast settings warm & cold viewing modes multiple color palettes picture in picture ballistic calculation on-board video recording with sound WiFi hotspot multiple zeroing profiles shot activated video recording defective pixel repair hotspot locator and multiple laser range finding modes.
Also included is an American-made ADM mounting system.
Share
Specifications
Specifications
| Manufacturer | AGM Global Vision |
|---|---|
| Battery Count | 2 |
| Battery Run Time | 7 hr |
| Battery Type | Replaceable and Rechargeable Li-ion Battery |
| Brand | AGM |
| Brand Family | RattlerV3 |
| CA Prop 65 | Yes |
| Color | Black |
| Condition | New |
| Optics Class | Thermal Imaging |
| Optics Mounting System | ADM 2120 |
| Optics Shockproof | Yes |
| Optics Type | Thermal Rifle Scope |
| Thermal Core | Uncooled VOx |
| Thermal Detector Type | 12um VOx Uncooled Focal Plane Array |
| Thermal Diopter Adj | -5/+5 |
| Thermal Display / Monitor Type | OLED |
| Thermal Display Resolution | 2560 x 2560 |
| Thermal Eye Relief | 45mm |
| Thermal Flat Field Correction | Semi-Auto / Manual |
| Thermal FOV Deg | 12.5° × 10.0° |
| Thermal Human Detect Range | 2710 yds |
| Thermal Imaging Palettes | White Black Red Hot / Monochrome Red / Monochrome Green / Fusion |
| Thermal Magnification | 2.5-20x |
| Thermal NETD | <15mK |
| Thermal Objective Lens (Focal Length) | 25mm F/1.0 |
| Thermal Operating Temperature | -30°C to +55°C (-22°F to +131°F) |
| Thermal Optics Wi-Fi | Yes |
| Thermal PIP Mode | Yes |
| Thermal Power Supply | 5 VDC/2 A USB Type-C interface |
| Thermal Rangefinder | Built-In with internal ballistic calculations |
| Thermal Recording Type | On-Board Video and Audio & Still Images |
| Thermal Reticle | 10 Reticles / 4 colors / on/off |
| Thermal Sensor Frame (Refresh) Rate | 50 Hz |
| Thermal Sensor Pixel Interval | 12 um |
| Thermal Sensor Resolution | 640 x 512 |
| Thermal Standby Mode | Yes |
| Thermal Storage | 64 GB EMMC |
| Thermal Video Recording Resolution | 1280x1280 |
| Warranty | Mfg 5 Year |
| Waterproof | IP67 |
| Weight | 1.6 lbs |
