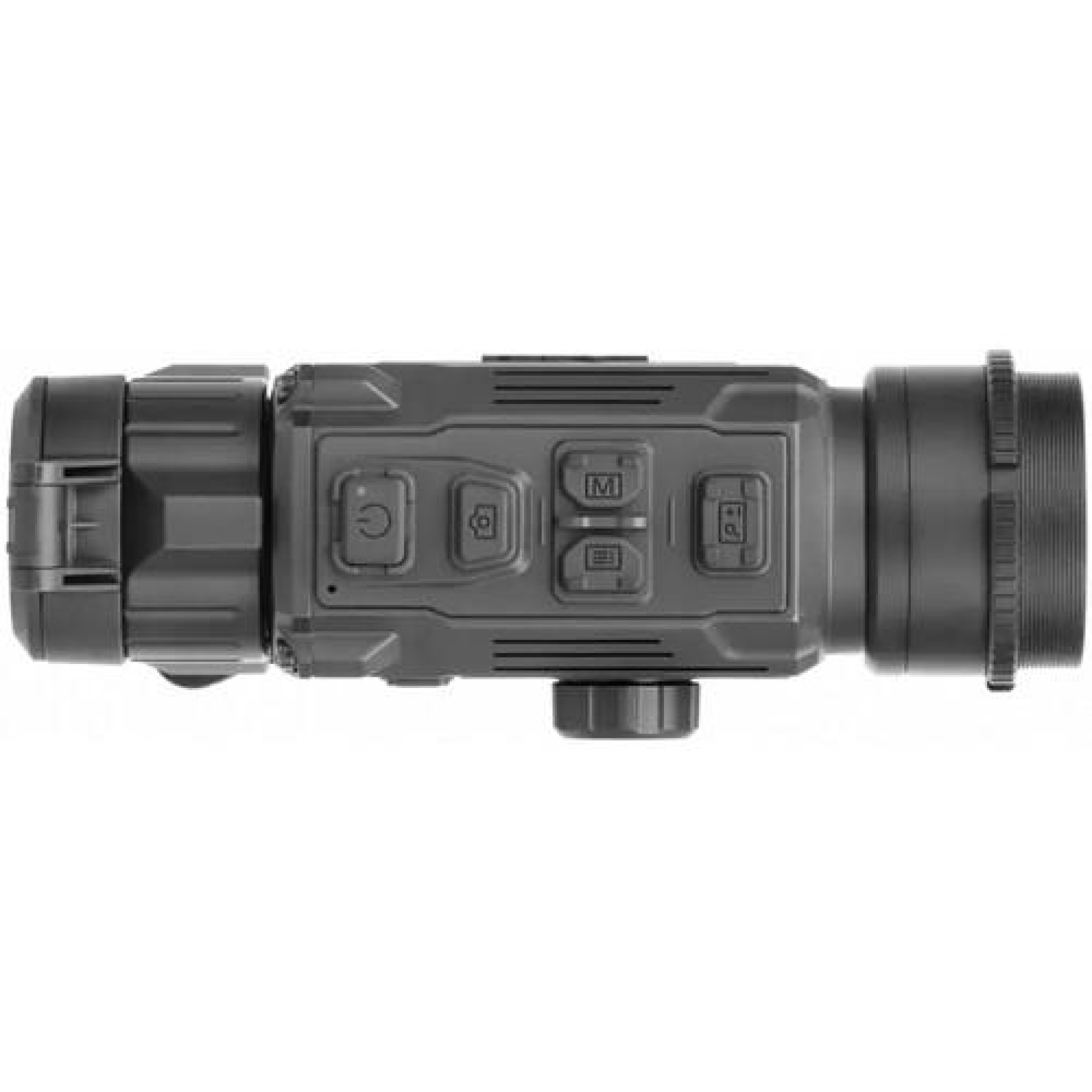

AGM Rattler-C V2 35-384 Thermal Imaging Clip-On 20mK 12 Mic 384x288 35mm
AGM Rattler-C V2 35-384 Thermal Imaging Clip-On 20mK 12 Mic 384x288 35mm
Couldn't load pickup availability
The AGM Rattler-C V2 series of thermal clip-ons boasts a industry-leading 12 micron sub-20mk thermal detectors. These physical attributes provide users with some of the best image quality AGM has produced to date with potential detection ranges up to 2600 yards. The Rattler-C V2 thermal clip-ons have a high-sensitivity sensor with 384×288 or 640×512 resolutions which provides a clear image under harsh environment conditions like darkness fog smoke dust rain snow wood camouflage etc.
The Rattler-C V2 clip-on The Rattler TC can easily be attached in front of day scopes to quickly convert a day optic into a thermal imaging device without any special tools or equipment required. Powered replaceable and rechargeable Li-ion battery the AGM Rattler-C V2 provides up to 11 hours of continuous battery life on a single charge (2 batteries included). An external 5V power bank (battery pack) can be easily connected via a USB-C connector for a significant increase of operating time. Onboard Wi-Fi module is also available for live video streaming and video/images recording via mobile application.
Includes : Thermal imaging clip-on mount two rechargeable battery charger USB cable lens cloth manual carrying case
Features:
- Replaceable proprietary Li-ion rechargeable battery 11 hours runtime
- Sub-20mK NETD for low-noise imagery
- 384 x 288 resolution with 12-micron sensor
- 50 Hz refresh rate for smooth video
- 1024 x 768 OLED display
- Black hot red hot white hot fusion color palettes
- Onboard video/audio recording and image capture
- Built-in eMMC memory 16 GB
- Shot-Activated Recording
- Wi-Fi data transmission
- Stadiametric rangefinder
- Standby mode
- IP67 dust and waterproof
- Withstands recoil up to 1000G
Share
Specifications
Specifications
| Manufacturer | AGM Global Vision |
|---|---|
| Battery Count | 2 |
| Battery Run Time | Up to 11 hours (25°C with hotspot off) |
| Battery Type | Replaceable and Rechargeable Li-ion Battery |
| Brand | AGM |
| Brand Family | Rattler-C V2 |
| CA Prop 65 | Yes |
| Color | Black |
| Condition | New |
| Country of Origin | USA |
| Material | Aluminum |
| Microphone | Yes |
| Optics App Support | AGM Connect |
| Optics Class | Thermal Imaging |
| Optics Finish | Matte |
| Optics Length | 7.2" |
| Optics Mounting System | ADM QD |
| Optics Objective | 35 |
| Optics Shockproof | Yes |
| Optics Type | Thermal Clip-On |
| Thermal Bluetooth | No |
| Thermal Boresight Adj | Digital Controlled |
| Thermal Caliber Rating | 308 Win |
| Thermal Detector Type | 12um VOx Uncooled Focal Plane Array |
| Thermal Display / Monitor Type | 0.39" OLED |
| Thermal Display Resolution | 384 x 288 |
| Thermal Eye Relief | 10mm |
| Thermal Flat Field Correction | Auto / Manual / External Correction |
| Thermal FOV Deg | 7.5° × 5.6° |
| Thermal Human Detect Range | 1800 yds |
| Thermal Imaging Palettes | White Black Red Hot Fusion |
| Thermal Magnification | 1x |
| Thermal Multi-Language Menu | Yes |
| Thermal NETD | <20 mk |
| Thermal Objective Lens (Focal Length) | 35mm F/1.0 |
| Thermal Optics Wi-Fi | Yes |
| Thermal PIP Mode | Yes |
| Thermal Power Supply | 5 VDC/2 A USB Type-C |
| Thermal Rangefinder | Stadiametric |
| Thermal Recording Type | On-Board Video and Audio |
| Thermal Reticle | 10 Reticles / 4 colors / on/off |
| Thermal Scene Modes | Cold / Warm |
| Thermal Sensor Frame (Refresh) Rate | 50 Hz |
| Thermal Sensor Pixel Interval | 12 um |
| Thermal Sensor Resolution | 384 x 288 |
| Thermal Snapshot Capture | Yes |
| Thermal Standby Mode | Yes |
| Thermal Storage | Built-in EMMC (16 GB) |
| Thermal Temp Spot Tracking | yes |
| Thermal Video Recording Resolution | Yes |
| Warranty | Mfg 5 Year |
| Waterproof | IP67 |
| Weight | 19 oz |
