AGM Global Vision
AGM ObservIR LRF 35-640
AGM ObservIR LRF 35-640
Couldn't load pickup availability

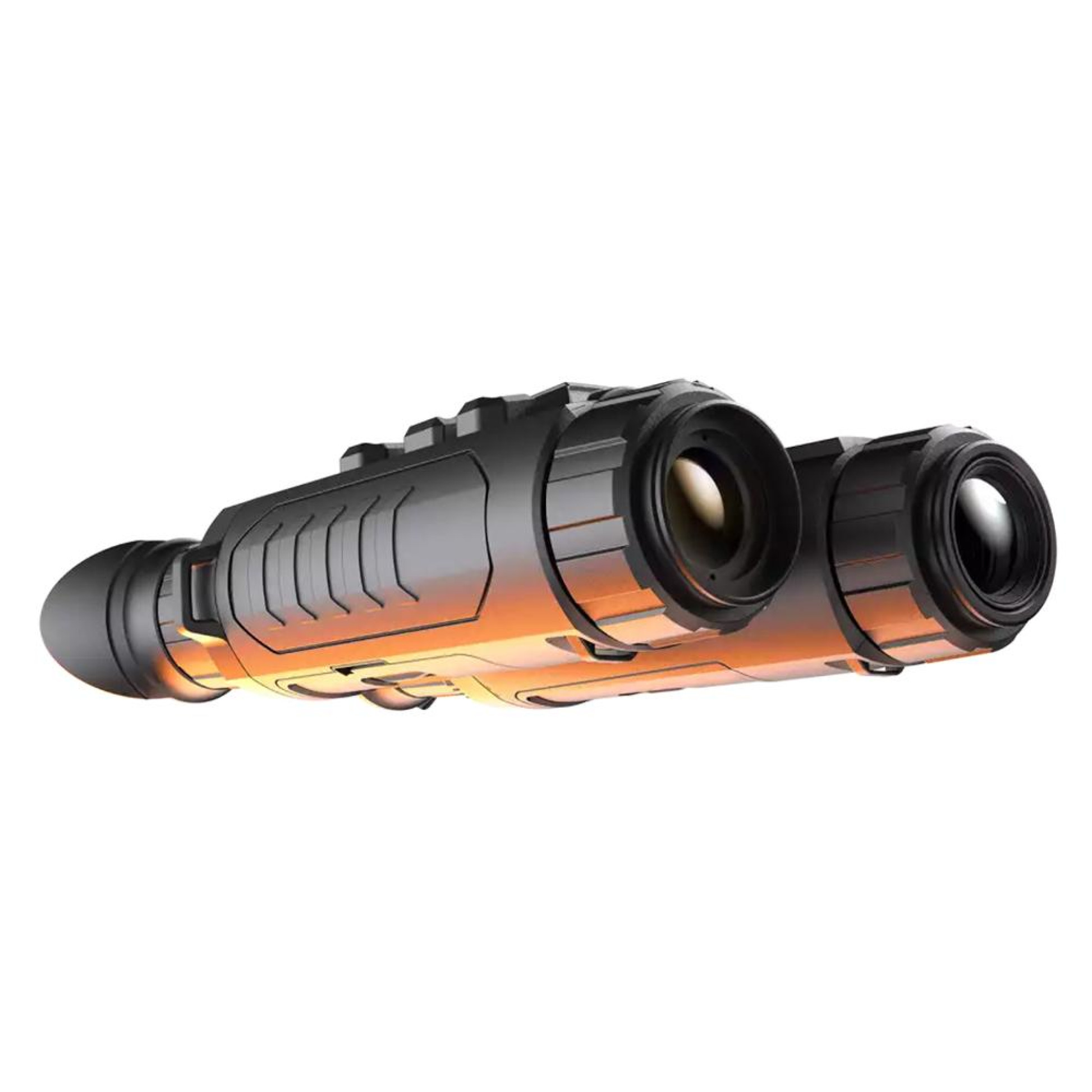

The AGM ObservIR LRF Thermal & Digital Day/Night Vision binocular is some of the most technologically advanced and feature-packed optics in the world. The primary engine behind these binocular lies within the main thermal viewing channel with its high-sensitivity 12 micron detector. Unlike other thermal binoculars on the market the ObservIR LRF also come outfitted with a digital day/night channel as well which is great for aiding in recognition of targets detected by the thermal channel. The built-in 1000m laser rangefinder simply takes the ObservIR LRF to another level and this is without even mentioning its 64GB of internal memory and Wi-Fi compatibility.
The ObservIR LRF monoculars also come packed with numerous software improvements and many features that have become commonplace within the AGM thermal product assortment: high-sensitivity thermal detector 35 mm objective lens with a 1.0 aperture 3840x2160 ultra-low light CMOS sensor various viewing modes multiple color palettes picture-in-picture mode built-in laser rangefinder GPS module long-range IR illuminator up to 8 hours of battery life on removable rechargeable 18650 batteries
USB Type-C port for external power capabilities IP67 waterproof rating. The package includes four 18650 batteries wrist strap and charger.
- Dual-spectrum thermal and digital day/night system
- 12μm high-sensitivity thermal sensor
- 640x512 thermal resolution
- 3x – 22x thermal magnification
- Digital image processing technology
- Ultra-low illumination optical channel
- 3840×2160 optical resolution
- Built-in IR illuminator
- Eye-safe 1000 m laser rangefinder
- 1920×1080 resolution 0.49-inch OLED display
- Digital Magnetic Compass
- Built-in GPS module
- Video/audio recording and snapshot capture
- Built-in 64 GB EMMC storage
- Wi-Fi hotspot
- Standby mode
- 8-hour continuous operation on a single charge
- Auto screen-off function to saving energy
- External power supply capability
- Rugged housing with rubber overmolding
- Waterproof and dustproof
Share
Specifications
Specifications
| Manufacturer | AGM Global Vision |
|---|---|
| Battery Count | 2 |
| Battery Run Time | 8 hr |
| Battery Type | 18650 Rechargeable |
| Brand | AGM |
| CA Prop 65 | Yes |
| Color | Black |
| Condition | New |
| Optics Interpupillary Distance | 60-74mm |
| Optics Length | 8.7" |
| Optics Type | Thermal Binocular |
| Thermal Detector Type | 12um VOx Uncooled Focal Plane Array |
| Thermal Diopter Adj | Yes |
| Thermal Display / Monitor Type | OLED |
| Thermal Display Resolution | 1920 x 1080 |
| Thermal Flat Field Correction | Auto / Manual / External Correction |
| Thermal FOV Deg | 12.5° × 10.0° |
| Thermal Human Detect Range | 1800 yds |
| Thermal Imaging Palettes | White Black Red Hot Fusion |
| Thermal Magnification | 3-22x |
| Thermal NETD | <15mK |
| Thermal Objective Lens (Focal Length) | 35mm F/1.0 |
| Thermal Operating Temperature | -20°C to 55°C (-4°F to 131°F) |
| Thermal Optics Wi-Fi | Yes |
| Thermal Power Supply | 5 VDC/2 A USB Type-C |
| Thermal Scene Modes | Jungle / Recognition |
| Thermal Sensor Frame (Refresh) Rate | 50 Hz |
| Thermal Sensor Pixel Interval | 12 um |
| Thermal Sensor Resolution | 640 x 512 |
| Thermal Snapshot Capture | Yes |
| Thermal Standby Mode | Yes |
| Thermal Storage | 64 GB EMMC |
| Waterproof | IP67 |
| Weight | 2 lbs |
